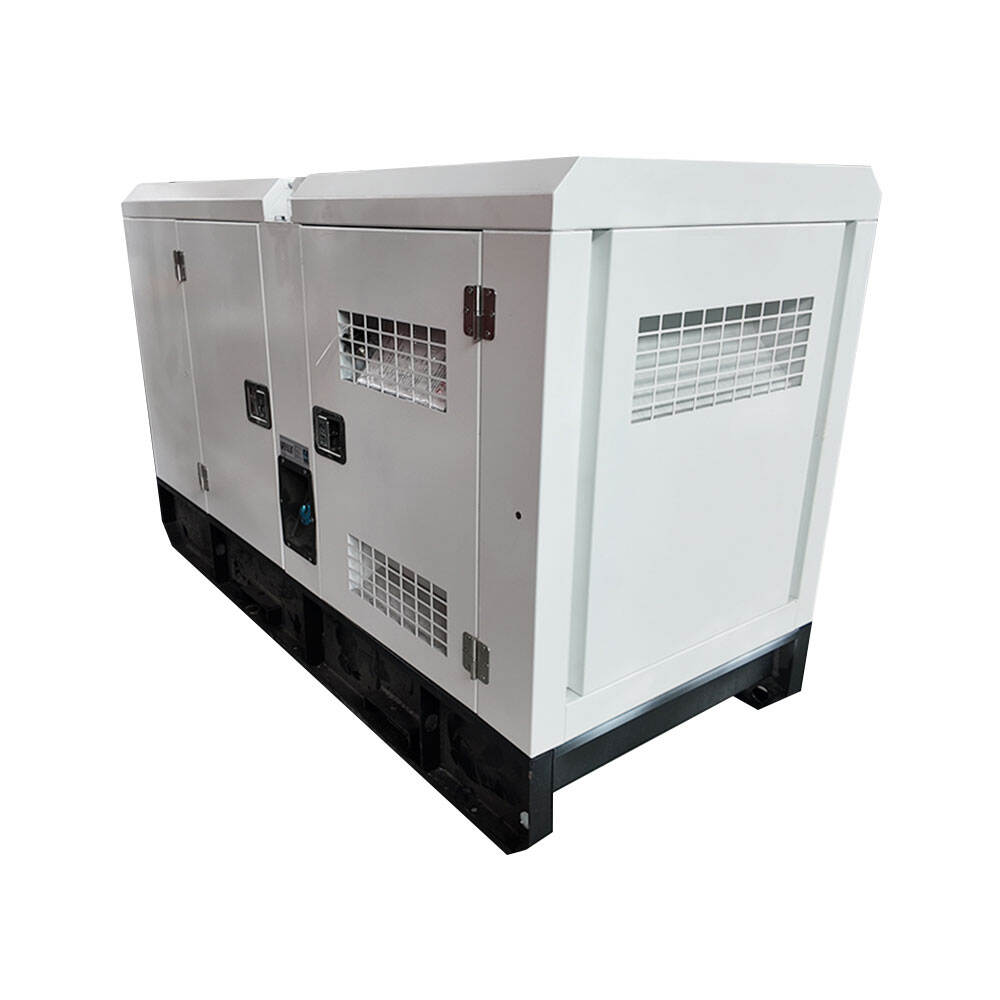

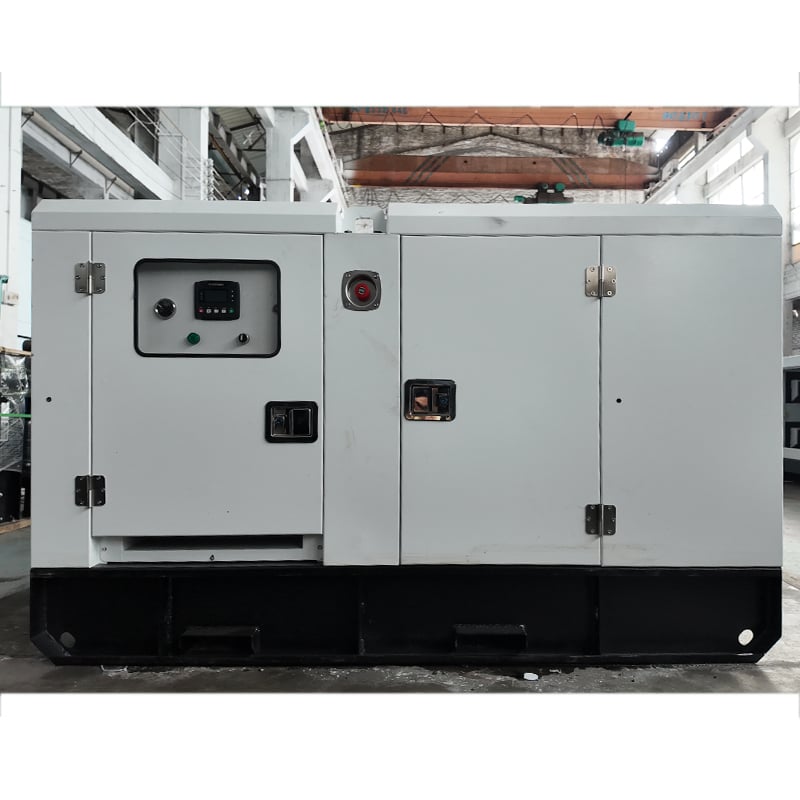

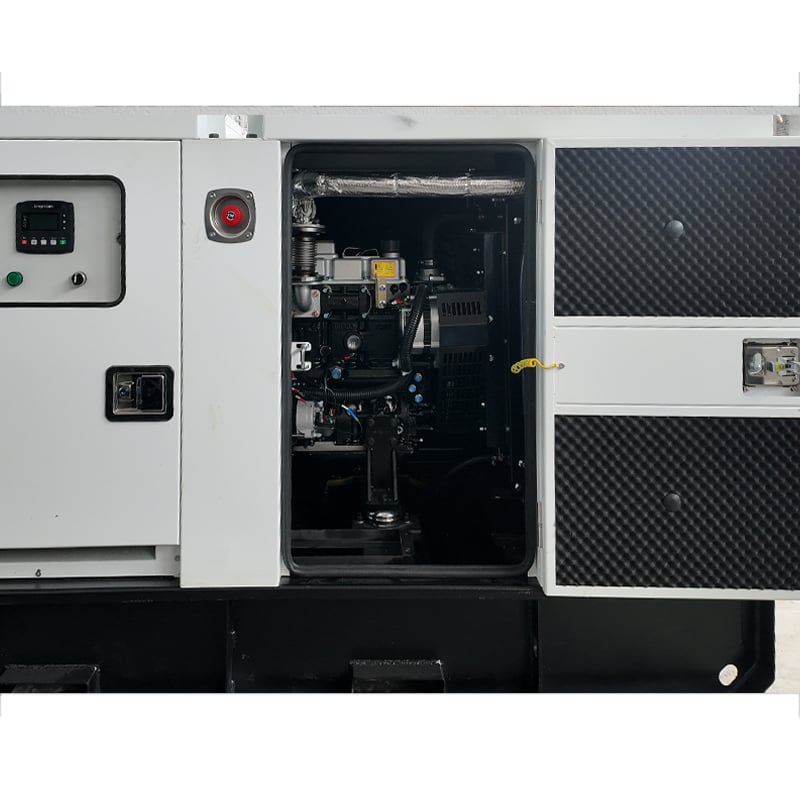

Yuchai 375Kva Diesel Generator Set

Minlongpower offers the Yuchai 375kva Diesel Generator Set. This generator is suitable for medium-sized applications. Yuchai's reputation for quality is evident in this product. It can power a variety of equipment and facilities. The 375kva capacity makes it suitable for small to medium-sized businesses, workshops, or backup power needs. The generator set is designed to be efficient and durable, ensuring consistent power output over time.

Description Parameters Sales Commitment FAQ

Description

Brief Description
Yuchai, YC6MJ515L-D22
Prime Power: 375kVA/300kW
Open Type Generator Set

Detailed Description
Engine Make / Model Yuchai, YC6MJ515L-D22

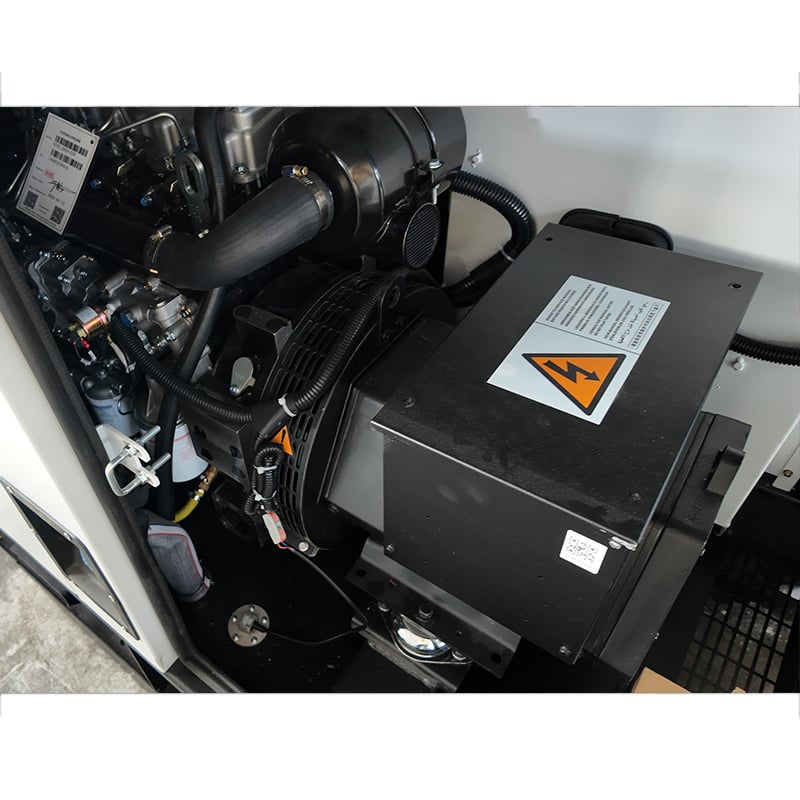

Alternator Make / Model Stamford, HCI 444FS

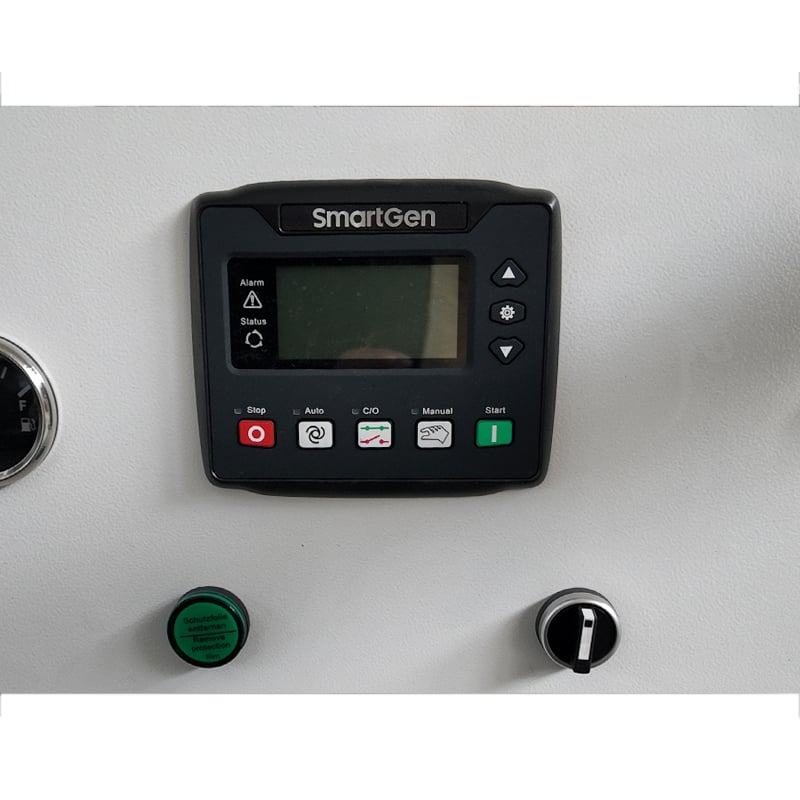

Control Panel SmartGen, HGM6110
Circuit Breaker Type 3-pole Manual Circuit Breaker
Battery Maintenance Free Lead Acid
Base Frame Robust Structure / Corrosion Resistant

Parameters

Prime Power	Standby Power	Voltage/Phase	Hz/rpm	PF
375kVA/300kW	412.5kVA/330kW	230/400V, 1/3	60/1800	0.8
Diesel Generator Set
Engine Make / Model		Yuchai, YC6MJ515L-D22
Alternator Make / Model		Stamford, HCI 444FS
Control Panel		SmartGen, HGM6110
Circuit Breaker Type		3-pole Manual Circuit Breaker
Battery		Maintenance Free Lead Acid
Base Frame		Robust Structure / Corrosion Resistant
Dimensions	Length(mm)	Width(mm)	Height(mm)	Weight(KG)
Open Type	3350	1100	1720	2260

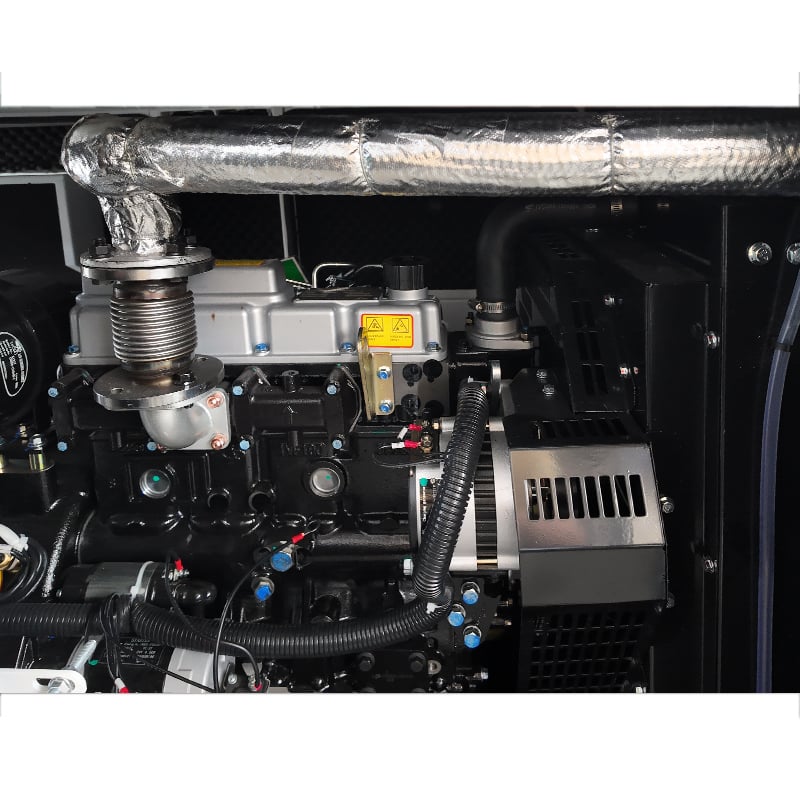

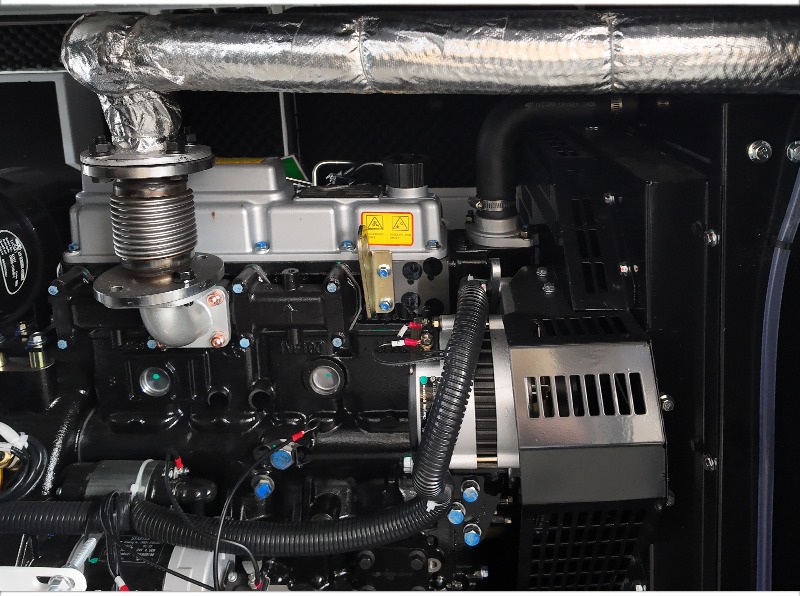

Engine Specifications
Engine Make Model		Yuchai YC6MJ515L-D22
No. of Cylinders		6-Cylinder; L-type
Cycle		4 Stroke
Aspiration		Exhaust Gas Turbocharged, Intercooled
Fuel System		Direct Injection
Governing Type		Electronic
Displacement		11.726L
Bore / Stroke		131 X 145mm
Compression Ratio		16.8:1
Prime Power		346kW
Standby Power		380kW
Engine Fuel System
Recommended Fuel		Class A2 Diesel
Fuel Consumption 100% ERP		63.6L/h
Fuel Consumption 100% PRP		57.2L/h
Fuel Consumption 75% PRP		42.7L/h
Fuel Consumption 50% PRP		28.8L/h
Fuel Consumption 25% PRP		/
Lubrication System
Oil pressure @ Idle Speed		≥120kPa
Oil pressure @ Governed Speed		300-600 kPa
Total System Capacity engine only		35L

Air System
Maximum Intake Air Restriction
Dirty Filter Element		3.5kPa
Clean Filter Element(Heavy Duty)		3.0kPa
Intake Air Flow @ PRP / ESP		20.67/21.07 m³/h
Cooling System
Thermostat Modulating Range		78-90°C
Coolant Capacity - Engine Only		18L
Maximum Outlet Water Temperature		99°C
Comply With Standards
GB/T 2820.1~6-2009, GB/T 2820.8~10-2002, GB/T 2820.12-2002, JB/T 10303-2001 JB/T 2819-1995, JB8587-1997, ISO8528, ISO3046

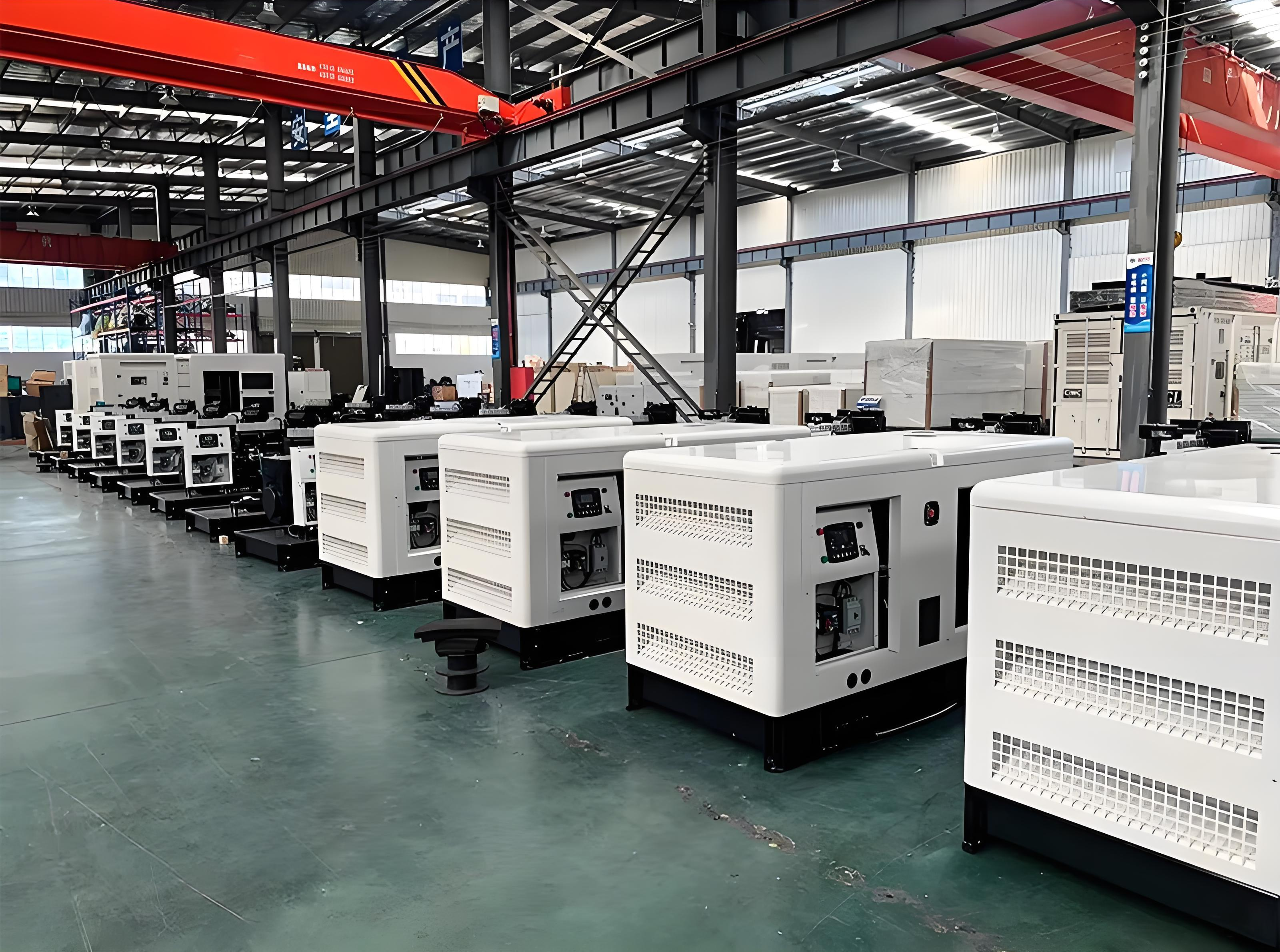

Sales Commitment

The products provided are all brand new, and each unit has undergone strict factory testing.
All products provide warranty services, with a warranty period of 18 months after the unit is debugged and accepted, or a total of 1500 hours of operation, whichever expires first.
