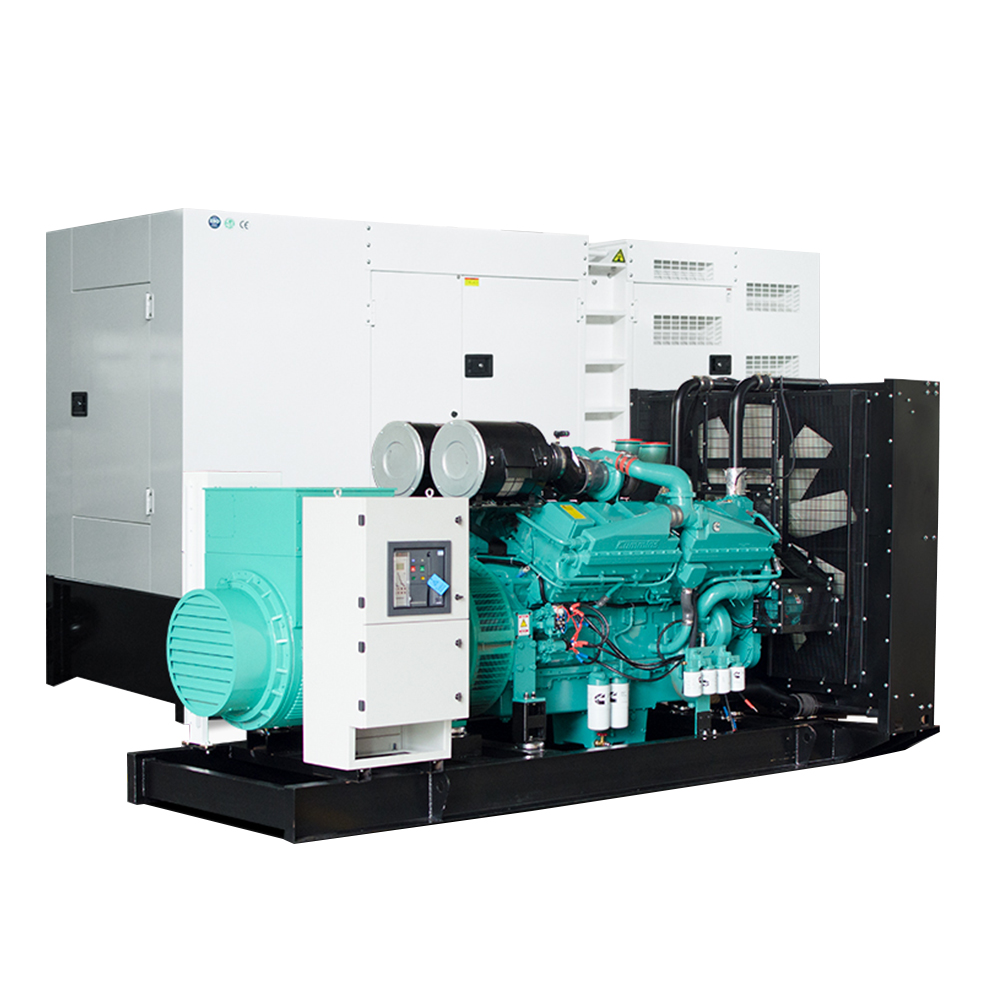

Baudouin 400kw Diesel Generator Set

Main Specification

Advantage
− Low fuel consumption
− Optimized system
− High reliability
− High availability
− Long maintenance cycle

Design standards
− Conformite Europeene CE)
− ISO8528-5:2005
− GB/T2820.5-2009

Environmental operating conditions
− Installation place: indoor (well ventilated)
− Ambient temperature: -25℃ to 50℃ (the coolant heater
is needed when the temperature is below 5℃)
− Humidity: Less than 90%
− Altitude: Below one thousand (1000) meters.

Performance guarantee
− Product design, manufacturing and performance
integrity verified by standards
− Generator set passed transient response test
according to ISO8528-5
− Both engine and alternator are prototype and factory
tested

Service support
− Provide global product service support
Factory inspection
− Protection devices working test
− Starting ability in normal temperature
− 50% rated power load moment capability
− Voltage deviation and speed variation: 0, 25%, 50%, 75%, 100%, 110%

Power Class Definition
− Prime Power (PRP): the genset runs continuously with variable load, the number of operating hours is not limited, and
1h overload 10% operation is allowed per 12h, and the average load factor is less than 80% per 24h.
− Standby Power (ESP): operating time does not exceed 500h per year, continuous operating time does not exceed
300h, the average load factor is less than 80% per 24h. Overload operation is not allowed.

Product Statement
− The data of specifications is based on the following standard environmental conditions test
・Ambient temperature 25℃
・ Altitude 100m
・ Relative temperature 30%
− Dimensions, weight and other parameters are for reference only, please refer to the final design drawing.

The products provided are all brand new, and each unit has undergone strict factory testing.
All products provide warranty services, with a warranty period of 18 months after the unit is debugged and accepted, or
a total of 1500 hours of operation, whichever expires first.
