Cummins 800kw Power Silent Diesel Generator Set

Cummins 800kw Power Silent Diesel Generator Set

The Cummins 800KW power silent diesel generator set from Minlong Power operates quietly while delivering powerful performance. It is equipped with advanced soundproofing technology to reduce noise levels. This generator set is perfect for applications where a quiet power source is needed, such as in residential areas or noise-sensitive environments, ensuring both power and peace.

Description Parameters Sales Commitment FAQ

Description

Brief Description
Cummins, KTA38-G2A
Prime power：1000 kVA/800kW
Silent Generator Set

Detailed Description
Engine Make /Model Cummins, KTA38-G2A
Alternator Make /Model Stamford, S6L1D-E4
Control Panel SmartGen, HGM6120
Circuit Breaker Type 4-pole motorized circuit breaker
Battery Maintenance free Lead Acid
Base Frame Robust Structure/ Corrosion Resistant

Parameters

Prime power	Standby Power	Voltage/Phase	Hz/rpm	PF
1000 kVA/800kW	1100kVA/880 kW	230/400V ， 1/3	60/ 1800	0.8
Diesel Generator Set
Engine Make /Mode		Cummins, KTA38-G2A

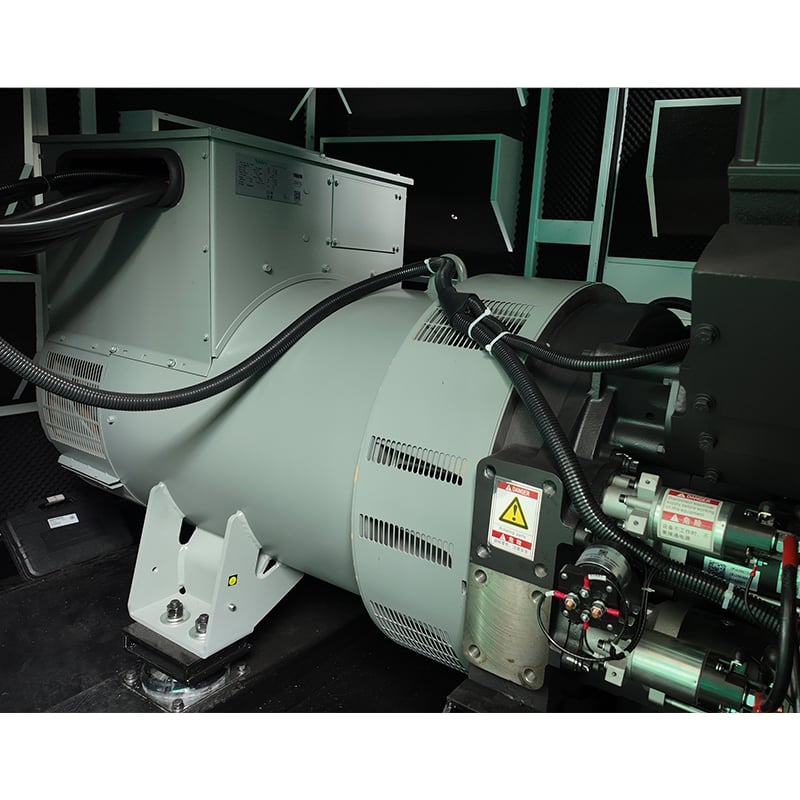

Alternator Make /Model		Stamford, S6L1D-E4
Control Panel		SmartGen, HGM6120
Circuit Breaker Type		4-pole motorized circuit breaker
Battery		Maintenance free Lead Acid
Base Frame		Robust Structure/ Corrosion Resistant
Dimensions	Length(mm)	Width(mm)	Height(mm)	Weight(KG)
Silent Type	5800	2100	2550	8560
Engine Specifications
Engine Make Model		Cummins KTA38-G2A
No. of Cylinders		12-Cylinder;V-type
Cycle		4 Stroke
Aspiration		Turbocharged & Aftercooled Intercooler
Fuel System		PT Pump Direct Injection
Governing Type		Electronic
Displacement		37.8 L
Bore/Stroke		159 x 159mm
Compression Ratio		14.5:1
Prime power		915kW
Standby power		1007kW
Lubrication System
Idle oil pressure		193 kPa
Rated speed oil pressure		297-483kPa
Air System
Maximum Intake Air Restriction
Dirty Filter Element		6.25kPa
Clean Filter Element		3.73kPa
Intake Air Flow @PRP		1251/1369L/s
Cooling System
Coolant Capacity - Engine Only		118L
Thermostat Modulating Range		82-93 °C
Comply with Standards
GB/T 2820.1~6-2009, GB/T 2820.8~10-2002, GB/T 2820.12-2002, JB/T 10303-2001 JB/T 2819-1995, JB8587-1997, ISO8528, ISO3046

Genset Model	Engine Model	Frequency	Speed	Continuous power	Type	Download
MLC200	MTA11-G2	50Hz	1500rpm	200KW	open/silent
MLC200	NT855-GA	50Hz	1500rpm	200KW	open/silent
MLC200	NTA855-G1	50Hz	1500rpm	200KW	open/silent
MLC200	NTA855-G1	60Hz	1800rpm	200KW	open/silent
MLC220	NTA855-G1A	50Hz	1500rpm	220KW	open/silent
MLC250	NTA855-G18	50Hz	1500rpm	250Kw	open/silent
MLC250	NTA855-G2	50Hz	1500rpm	250Kw	open/silent
MLC280	NTA855-G4	50Hz	1500rpm	280Kw	open/silent
MLC300	KTA19-G2	50Hz	1500rpm	300Kw	open/silent
MLC300	NTAA855-G7	50Hz	1500rpm	300Kw	open/silent
MLC315	NTA855-G3	60Hz	1800rpm	315Kw	open/silent
MLC320	NTAA855-G7A	50Hz	1500rpm	320Kw	open/silent
MLC320	QSNT-G3	50Hz	1500rpm	320Kw	open/silent
MLC350	KTA19-G2	60Hz	1800rpm	350Kw	open/silent
MLC360	KTA19-G3	50Hz	1500rpm	360Kw	open/silent
MLC400	KTA19-G3A	50Hz	1500rpm	400Kw	open/silent
MLC400	KTA19-G4	50Hz	1500rpm	400Kw	open/silent
MLC410	KTA19-G3	60Hz	1800rpm	410Kw	open/silent
MLC420	KTAA19-G5	50Hz	1500rpm	420Kw	open/silent
MLC450	KTA19-G3A	60Hz	1800rpm	450kw	open/silent
MLC450	KTA19-G4	60Hz	1800rpm	450kw	open/silent
MLC450	KTA19-G8E	50Hz	1500rpm	450kw	open/silent
MLC460	KTA19-G8	50Hz	1500rpm	460Kw	open/silent
MLC460	KTAA19-G6	50Hz	1500rpm	460Kw	open/silent
MLC470	KTAA19-G5	60Hz	1800rpm	470Kw	open/silent
MLC500	KTA19-G8A	50Hz	1500rpm	500Kw	open/silent
MLC500	KTAA19-G6A	50Hz	1500rpm	500Kw	open/silent
MLC500	KTAA19-G7	50Hz	1500rpm	500Kw	open/silent
MLC545	KTA19-G9A	50Hz	1500rpm	545Kw	open/silent
MLC550	KTAA19-G6A	60Hz	1800rpm	550Kw	open/silent
MLC600	KTA38-G2	50Hz	1500rpm	600Kw	open/silent
MLC640	KTA38-G28	50Hz	1500rpm	640Kw	open/silent
MLC650	KTA38-G2E	50Hz	1500rpm	650Kw	open/silent
MLC728	KTA38-G2A	50Hz	1500rpm	728Kw	open/silent
MLC750	KTA38-G28	60Hz	1800rpm	750Kw	open/silent
MLC750	KTA38-G5E	50Hz	1500rpm	750Kw	open/silent
MLC800	KTA38-G2A	60Hz	1800rpm	800Kw	open/silent
MLC800	KTA38-G5	50Hz	1500rpm	800Kw	open/silent
MLC850	KTA38-G7E	50Hz	1500rpm	850Kw	open/silent
MLC900	KTA38-G4	60Hz	1800rpm	900Kw	open/silent
MLC900	KTA38-G48	60Hz	1800rpm	900Kw	open/silent
MLC900	KTA38-G9	50Hz	1500rpm	900Kw	open/silent
MLC900	KTA38-G9E	50Hz	1500rpm	900Kw	open/silent
MLC1000	KTA38-G9	60Hz	1800rpm	1000Kw	open/silent
MLC1000	KTA50-G3	50Hz	1500rpm	1000Kw	open/silent
MLC1000	KTA50-G3-A	50Hz	1500rpm	1000Kw	open/silent
MLC1000	KTA50-G3E	50Hz	1500rpm	1000Kw	open/silent
MLC1020	KTA50-G12	50Hz	1500rpm	1020Kw	open/silent
MLC1100	KTA50-G3	60Hz	1800rpm	1100kw	open/silent
MLC1100	KTA50-G8	50Hz	1500rpm	1100kw	open/silent
MLC1100	KTA50-G12A	50Hz	1500rpm	1100kw	open/silent
MLC1130	KTA50-G12	60Hz	1800rpm	1130Kw	open/silent
MLC1200	KTA50-GS8	50Hz	1500rpm	1200Kw	open/silent
MLC1220	KTA50-G12A	60Hz	1800rpm	1220Kw	open/silent
MLC1260	KTA50-G9	60Hz	1800rpm	1260Kw	open/silent
MLC1340	KTA50-G15X	50Hz	1500rpm	1340Kw	open/silent

Sales Commitment

The products provided are all brand new, and each unit has undergone strict factory testing.
All products provide warranty services, with a warranty period of 18 months after the unit is debugged and accepted, or
a total of 1500 hours of operation, whichever expires first.


FAQ

Q: How can we guarantee quality?

A: Always a pre-production sample before mass production;
Always final Inspection before shipment;

Q: What can you buy from us?

A: Diesel Generator Set, Silent Diesel Generator Set, Open Type Diesel Generator Set, Photovoltaic Power Station, Solar Power Station

Q: Why should you buy from us not from other suppliers?

A: Guangdong Minlong Mechanical and Electrical Equipment Co., Ltd. was established in 1995. Its headquarters is located in Foshan, Guangdong, the world power generating unit manufacturing base in the Pearl River Delta, which is the most developed in China.

Q: What services can we provide?

A: Accepted Delivery Terms: FOB;
Accepted Payment Currency: USD, CHF;
Accepted Payment Type: T/T, MoneyGram, Western Union, Cash;
Language Spoken: English, Chinese, Arabic
