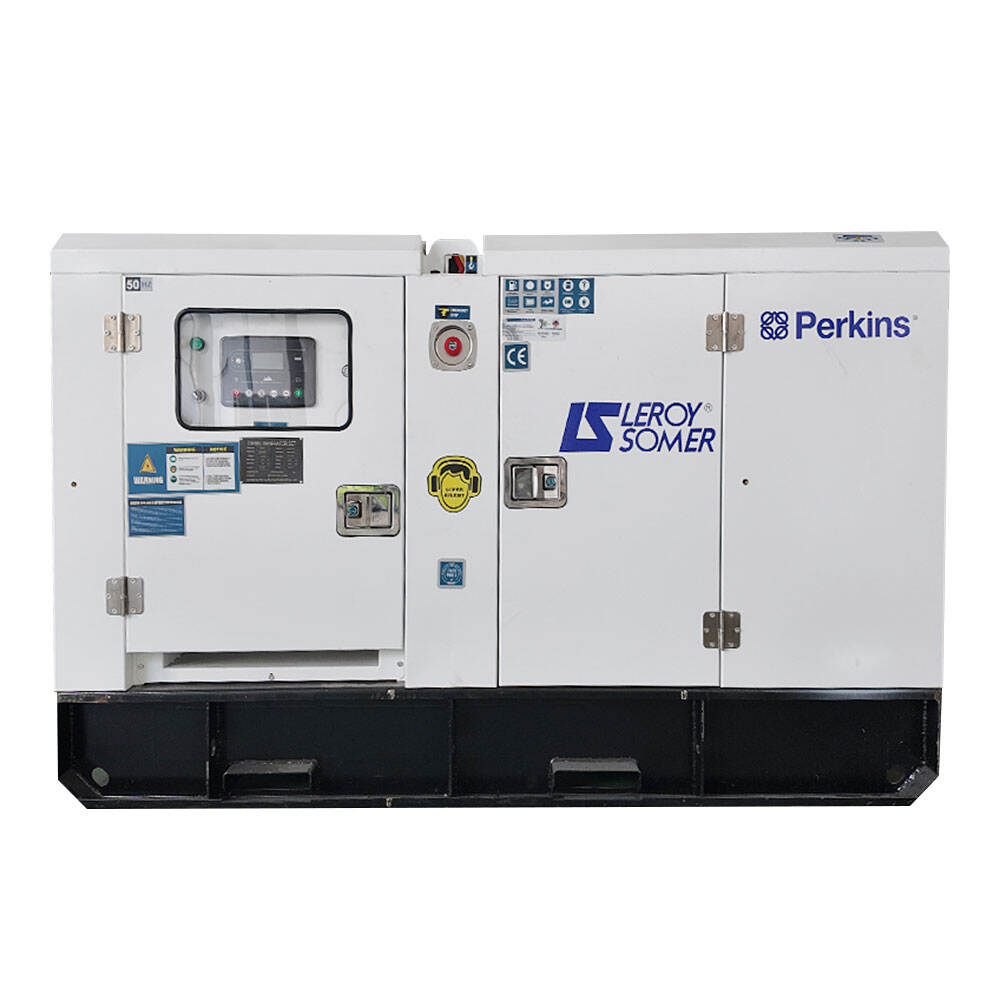

Perkins 1000Kw Diesel Generator Set

Minlongpower presents the Perkins 1000Kw diesel generator set. This powerful generator is designed for medium to large applications. Perkins' advanced engineering provides high performance and reliability. The 900kVA capacity can power a significant amount of equipment and operations. It is suitable for industrial, commercial, and institutional settings. The generator set is built to handle heavy workloads and deliver consistent power output.

Description Sales Commitment FAQ

Description

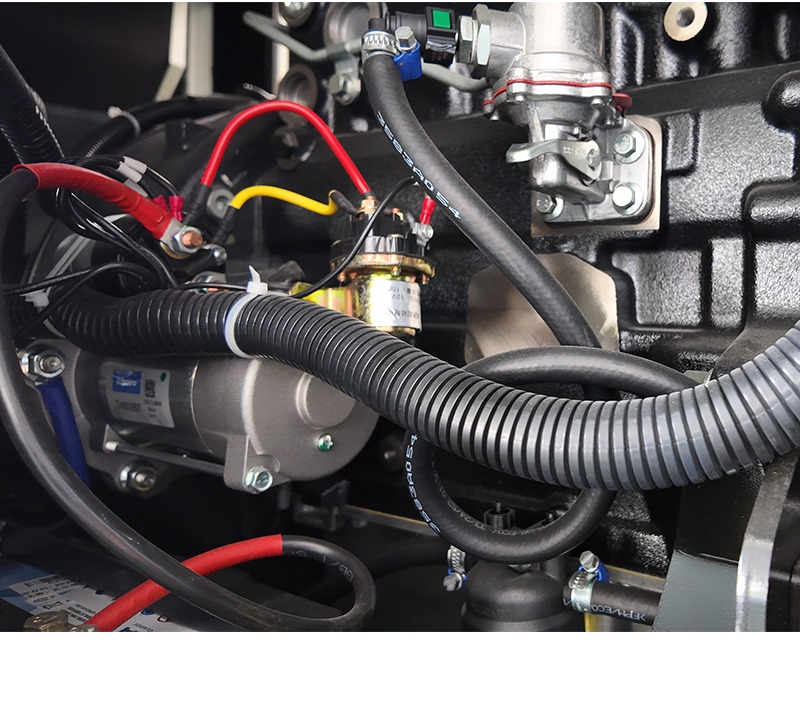

6(bb708ddd51).jpg Brief Description
PERKINS 4012-46TWG2A (India)
Prime Power1250kVA / 1000 kWe

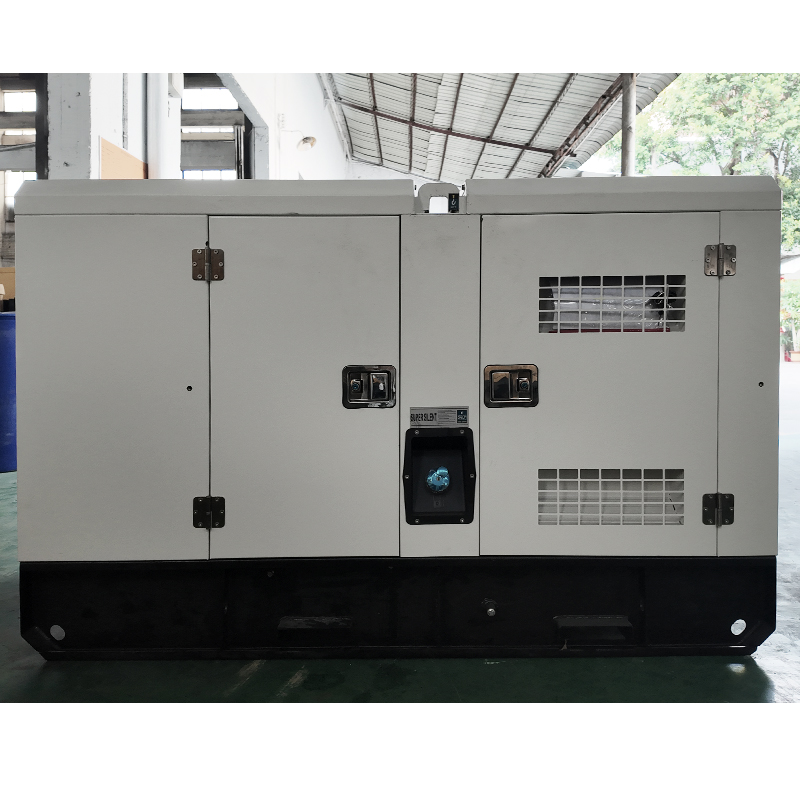

Silent Generator Set

Detailed Description
Engine Make / Model PERKINS 2506C-E15TAG2
Alternator Make / Model Leroy Somer TAL-A47-C

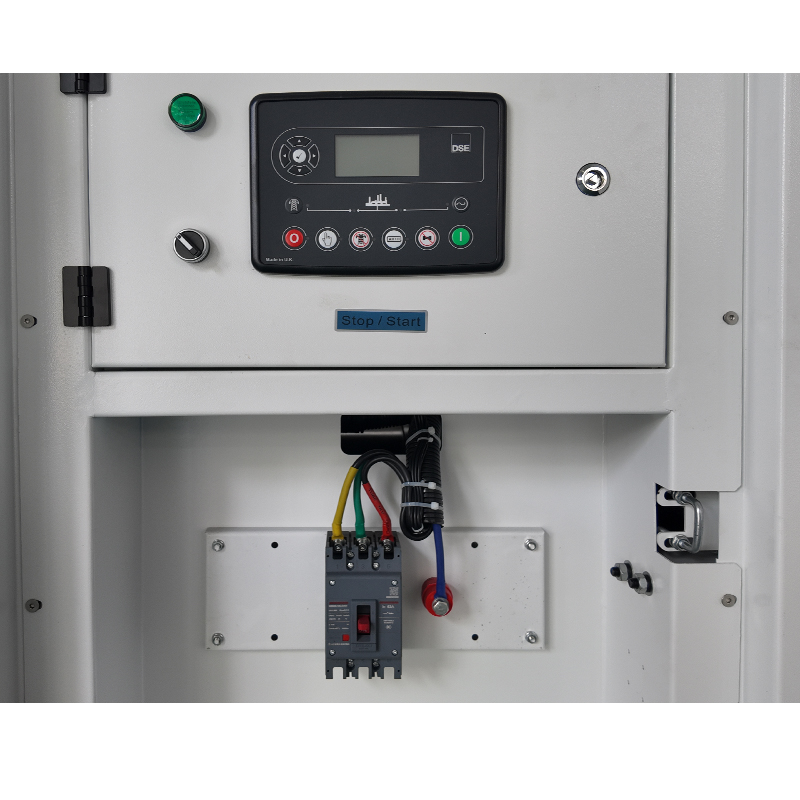

Control Panel SmartGen HGM6110
Circuit Breaker Type 3 Pole MCCB (4P Available as optional)
Battery Maintenance Free Lead Acid
Base Frame Robust Structure / Corrosion Resistant

Prime Power	Standby Power	Voltage/Phase	Hz/Rpm	PF
1250kVA/1000 kWe	1385kVA/1100 kWe	230/400,1/3	50/ 1500	0.8
Diesel Generator Set
Engine Make / Mode		PERKINS 4012-46TWG2A(India)
Alternator Make / Model		Leroy Somer TAL-A47-C
Control Panel		SmartGen HGM6110
Circuit Breaker Type		3 Pole MCCB (4P Available as optional)
Battery		Maintenance Free Lead Acid
Base Frame		Robust Structure / Corrosion Resistant
Dimensions	Length(mm)	Width(mm)	Height(mm)	Weight(KG)
Silent Type	4460	2080	2390	12060
Engine Specifications
Engine Make Model		PERKINS 2506C-E15TAG2
No. Of Cylinders		6 Vertical In-line
Cycle		4 Stroke
Aspiration		Turbocharged
Fuel System		Water Cooled
Governing Type		Electronic
Displacement		15.2L
Bore/Stroke		137x 171mm
Compression Ratio		16:1
Prime Power		1000kW
Standby Power		1100kW
Lubrication System
Oil Filter Type		Spin-On Full Flow
Total Oil Capacity		62 L
Air System
Maximum Intake Air Restriction
Air Filter Type		Dry Elemen
Combustion Air Flow (PRP)		35.8 m³/min
Combustion Air Flow (ESP)		36.6 m³/min
Cooling System
Coolant Capacity - Engine Only		58 L
Thermostat Modulating Range		82-93 °C
Comply With Standards
GB/T 2820.1~6-2009, GB/T 2820.8~10-2002, GB/T 2820.12-2002, JB/T 10303-2001 JB/T 2819-1995, JB8587-1997, ISO8528, ISO3046

Genset Model	Engine Model	Frequency	Speed	Continuous Power	Type	Download
MLP1600	4016TAG2A	50Hz	1500rpm	1600Kw	open/silent
MLP15	403A-15G2	50Hz	1500rpm	12Kw	open/silent
MLP15	403A-15G	60Hz	1800rpm	12Kw	open/silent
MLP20	404D-22G	50Hz	1500rpm	20Kw	open/silent
MLP150	1106A-70TG2	50Hz	1500rpm	120Kw	open/silent
MLP700	2806A-E18TAG2	50Hz	1500rpm	520Kw	open/silent
MLP600	4006-23TAG2A	50Hz	1500rpm	600Kw	open/silent
MLP1250	4006-23TAG2A	50Hz	1500rpm	900Kw	open/silent

Sales Commitment

The products provided are all brand new, and each unit has undergone strict factory testing.
All products provide warranty services, with a warranty period of 18 months after the unit is debugged and accepted, or a total of 1500 hours of operation, whichever expires first.


FAQ

Q: How can we guarantee quality?

A: Always a pre-production sample before mass production;
Always final Inspection before shipment;

Q: What can you buy from us?

A: Diesel Generator Set, Silent Diesel Generator Set, Open Type Diesel Generator Set, Photovoltaic Power Station, Solar Power Station

Q: Why should you buy from us not from other suppliers?

A: Guangdong Minlong Mechanical and Electrical Equipment Co., Ltd. was established in 1995. Its headquarters is located in Foshan, Guangdong, the world power generating unit manufacturing base in the Pearl River Delta, which is the most developed in China.

Q: What services can we provide?

A: Accepted Delivery Terms: FOB;
Accepted Payment Currency: USD, CHF;
Accepted Payment Type: T/T, MoneyGram, Western Union, Cash;
Language Spoken: English, Chinese, Arabic
