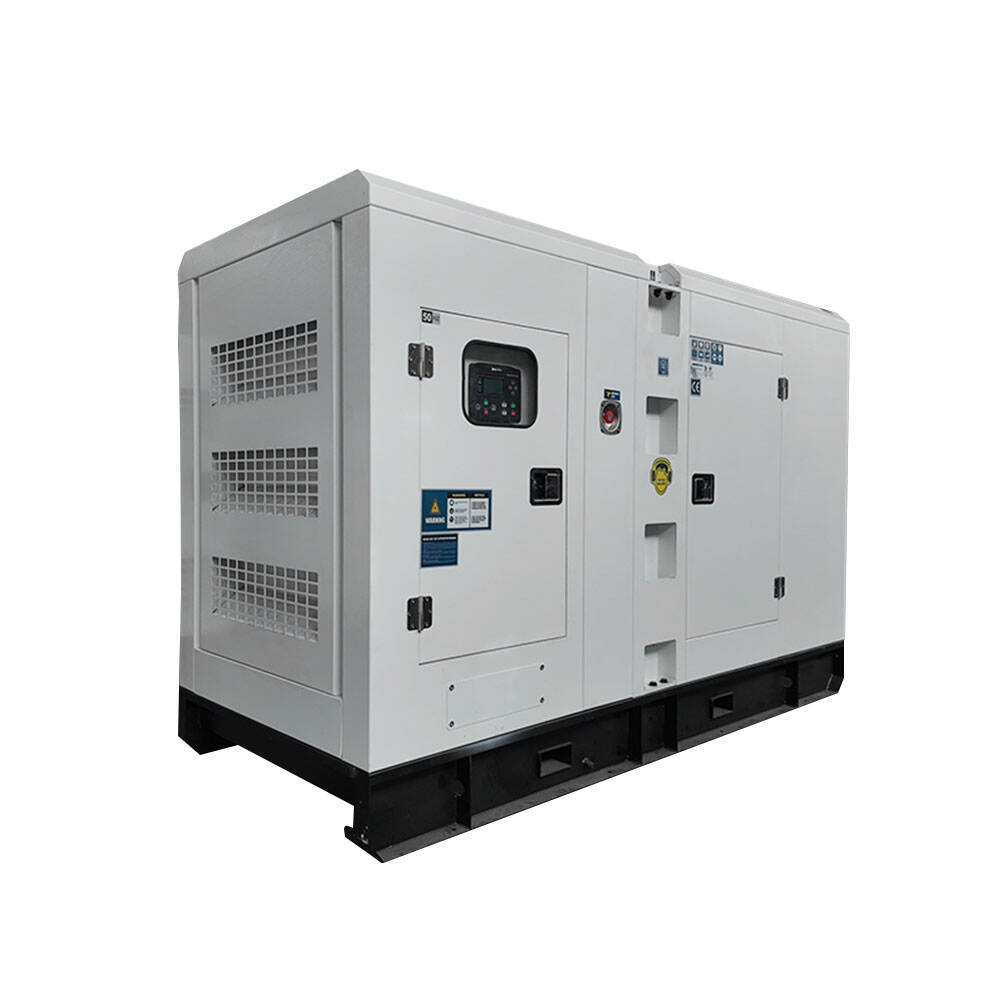

Perkins 500kva Diesel Generator Set

Minlongpower presents the Perkins 900kVA diesel generator set. This powerful generator is designed for medium to large applications. Perkins' advanced engineering provides high performance and reliability. The 900kVA capacity can power a significant amount of equipment and operations. It is suitable for industrial, commercial, and institutional settings. The generator set is built to handle heavy workloads and deliver consistent power output.

Description Parameters Sales Commitment FAQ

Description

Brief Description
Perkins, 2506C-E15TAG2 (USA/EU)
Prime power: 400kW/500kVA

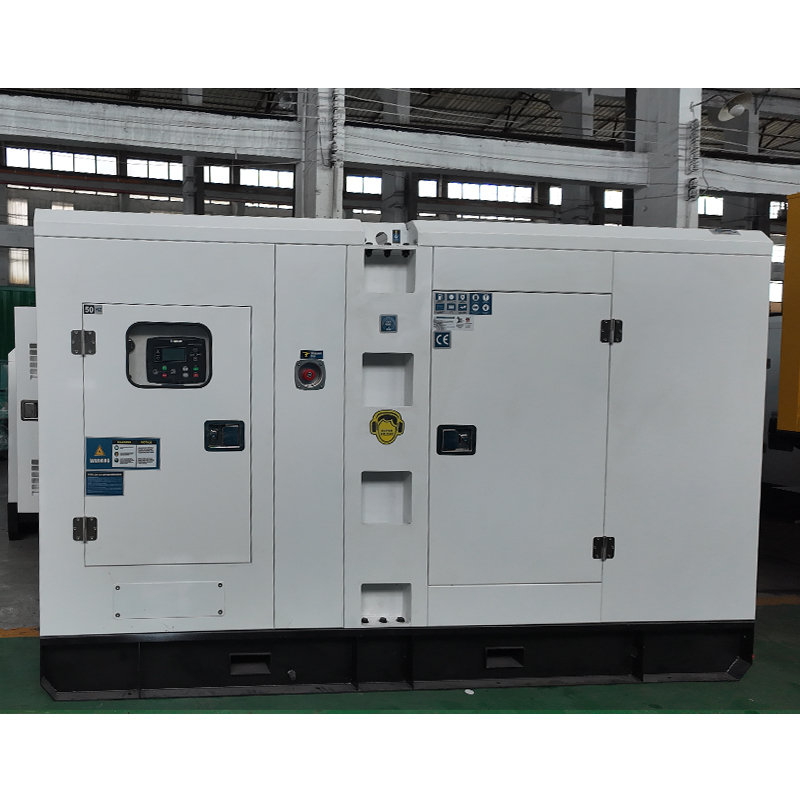

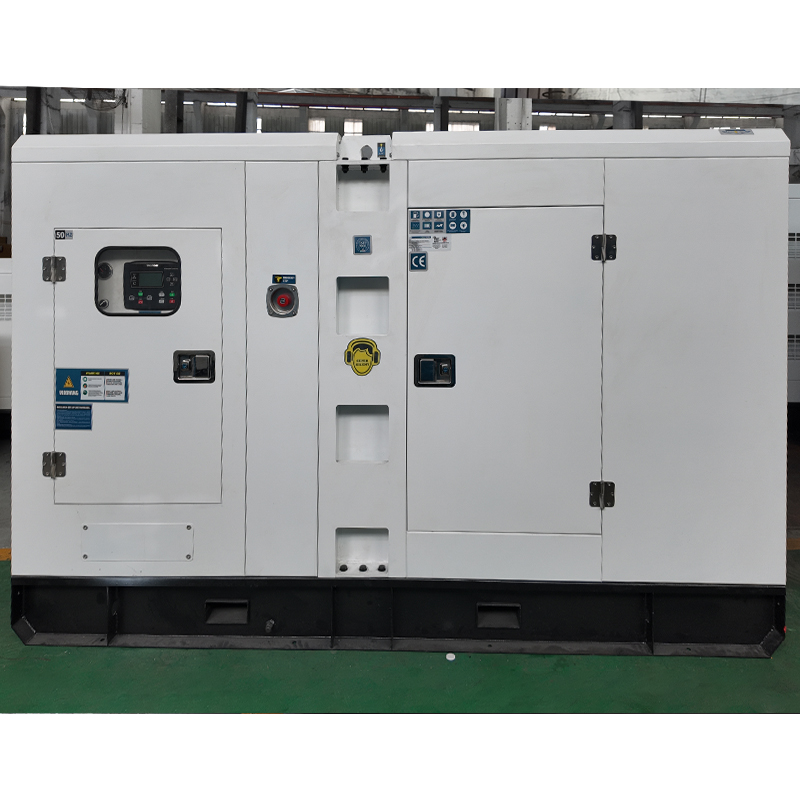

Silent Generator Set

Detailed Description
Engine Make / Model Perkins, 2506C-E15TAG2 (USA/EU)
Alternator Make / Model Stamford, S6L1D-F4

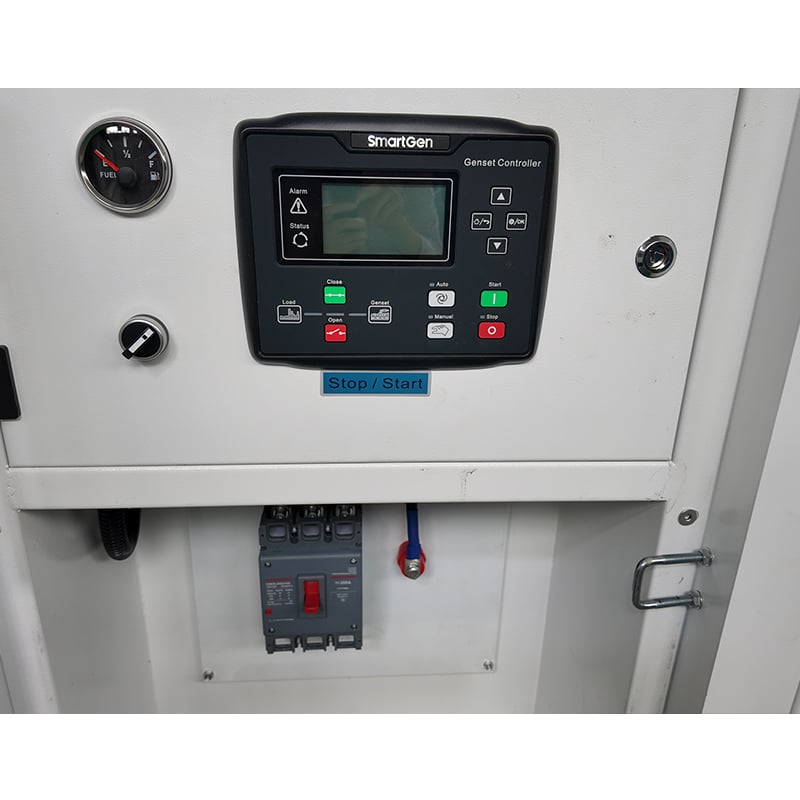

Control Panel Deepsea, DSE6120
Circuit Breaker Type 3-pole manual circuit breaker
attery Maintenance free Lead Acid
Base Frame Robust Structure / Corrosion Resistantt

Parameters

Prime Power	Standby Power	Voltage/Phase	Hz/Rpm	PF
400kW/500kVA	440W/550kVA	230/400V , 1/3	50/1500	0.8
Diesel Generator Set
Engine Make / Model		Perkins, 2506C-E15TAG2 (USA/EU)
Alternator Make / Model		Stamford, S6L1D-F4
Control Panel		Deepsea, DSE6120
Circuit Breaker Type		3-Pole Manual Circuit Breaker
Battery		Maintenance Free Lead Acid
Base Frame		Robust Structure / Corrosion Resistant
Dimensions	Length(mm)	Width(mm)	Height(mm)	Weight(KG)
Silent Type	4460	2080	2390	12060

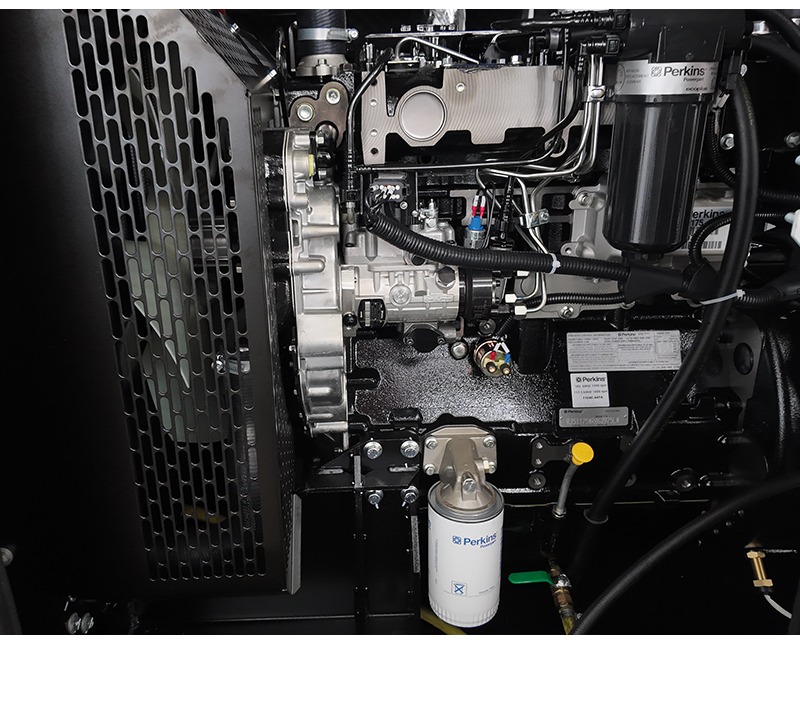

Engine Specifications
Engine Make Model		Perkins, 2506C-E15TAG2 (USA/EU)
No. Of Cylinders		8-Cylinder In-line
Cycle		4 Stroke
Aspiration		Turbocharged And Air-to-air Chargecooled
Fuel System		Water Cooled
Governing Type		Electronic
Displacement		30.56L
Bore/Stroke		160x190mm
Compression Ratio		12.8:1
Prime Power		997kW
Standby Power		1105kW
Engine Fuel System
Recommended Fuel		Class A2 Diesel
Fuel Consumption 100% ERP		210
Fuel Consumption 100% PRP		206
Fuel Consumption 75% PRP		202
Fuel Consumption 50% PRP		204
Fuel Consumption 25% PRP		---
Lubrication System
Maximum sump capacity		153L
Minimum sump capacity		127L
Minimum oil pressure		240kPa
Air System
Maximum Intake Air Restriction
Dirty Filter Element		5.0kPa
Clean Filter Element		1.3kPa
Air Filter Type		Paper Element
Cooling System
Coolant Capacity - Engine Only		48L
Maximum Top Tank Temperature		98°C
Thermostat Operation Range		84 - 93°C
Comply With Standards
GB/T 2820.1~6-2009, GB/T 2820.8~ 10-2002, GB/T 2820.12-2002, JB/T 10303-2001 JB/T 2819-1995, JB8587-1997, ISO8528, ISO3046

Genset Model	Engine Model	Frequency	Speed	Continuous Power	Type	Download
MLP1600	4016TAG2A	50Hz	1500rpm	1600Kw	open/silent
MLP15	403A-15G2	50Hz	1500rpm	12Kw	open/silent
MLP15	403A-15G	60Hz	1800rpm	12Kw	open/silent
MLP20	404D-22G	50Hz	1500rpm	20Kw	open/silent
MLP150	1106A-70TG2	50Hz	1500rpm	120Kw	open/silent
MLP700	2806A-E18TAG2	50Hz	1500rpm	520Kw	open/silent
MLP600	4006-23TAG2A	50Hz	1500rpm	600Kw	open/silent
MLP1250	4006-23TAG2A	50Hz	1500rpm	900Kw	open/silent

Sales Commitment

The products provided are all brand new, and each unit has undergone strict factory testing.

All products provide warranty services, with a warranty period of 18 months after the unit is debugged and accepted, or a total of 1500 hours of operation, whichever expires first.


FAQ

Q: How can we guarantee quality?

A: Always a pre-production sample before mass production;
Always final Inspection before shipment;

Q: What can you buy from us?

A: Diesel Generator Set, Silent Diesel Generator Set, Open Type Diesel Generator Set, Photovoltaic Power Station, Solar Power Station

Q: Why should you buy from us not from other suppliers?

A: Guangdong Minlong Mechanical and Electrical Equipment Co., Ltd. was established in 1995. Its headquarters is located in Foshan, Guangdong, the world power generating unit manufacturing base in the Pearl River Delta, which is the most developed in China.

Q: What services can we provide?

A: Accepted Delivery Terms: FOB;
Accepted Payment Currency: USD, CHF;
Accepted Payment Type: T/T, MoneyGram, Western Union, Cash;
Language Spoken: English, Chinese, Arabic
