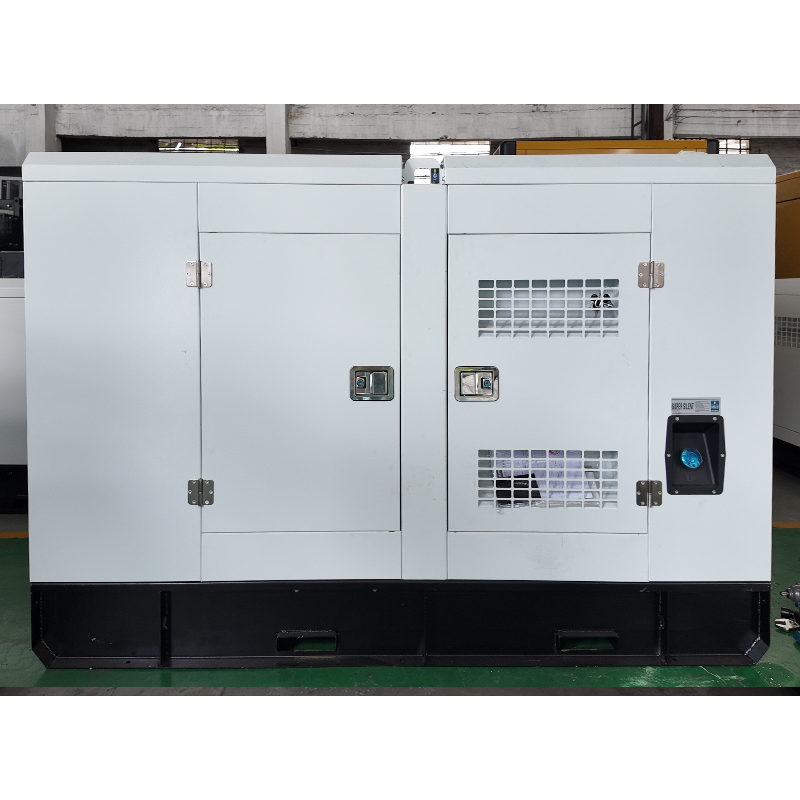

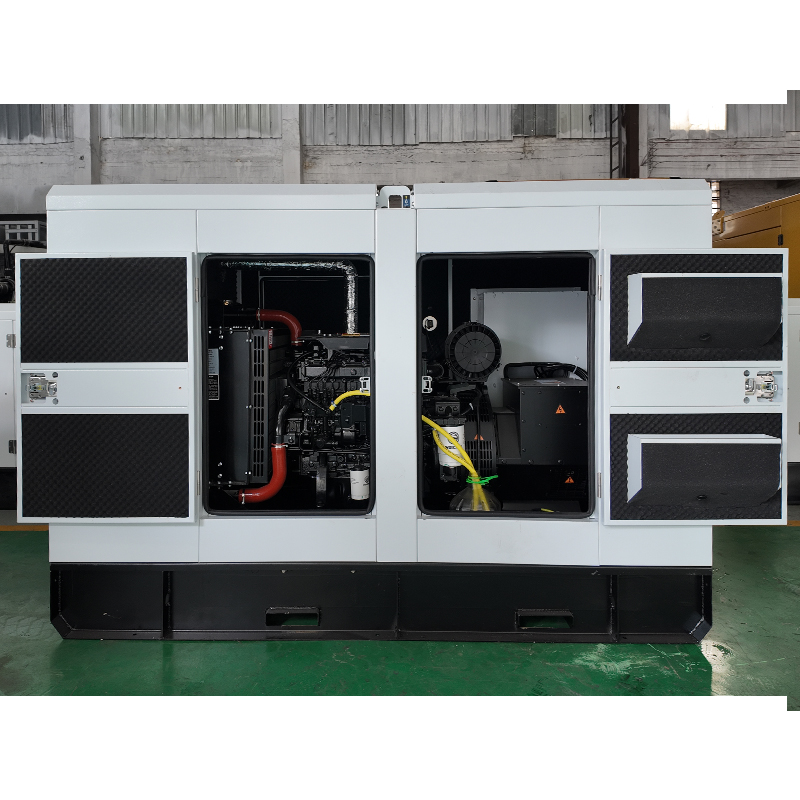

Minlongpower offers the Weichai 120kVA diesel generator set. This generator is suitable for smaller to medium-sized applications. Weichai's technology ensures reliable power supply. The 120kVA capacity can power a variety of equipment and facilities. It is a good option for backup power in small to medium-sized businesses or for powering certain operations in a workshop or a small factory. It is designed to be efficient and durable, providing a consistent power output. With its reliable performance, it can meet the power needs of different scenarios, making it a valuable choice for those seeking a dependable power source.
Brief Description
WeiChai WP6D152E20
Prime Power: 125kVA/120kW
Silent Generator Set
Detailed Description
Engine Make / Model WeiChai WP6D152E200
Alternator Make / Model Stamford, UCI 274F

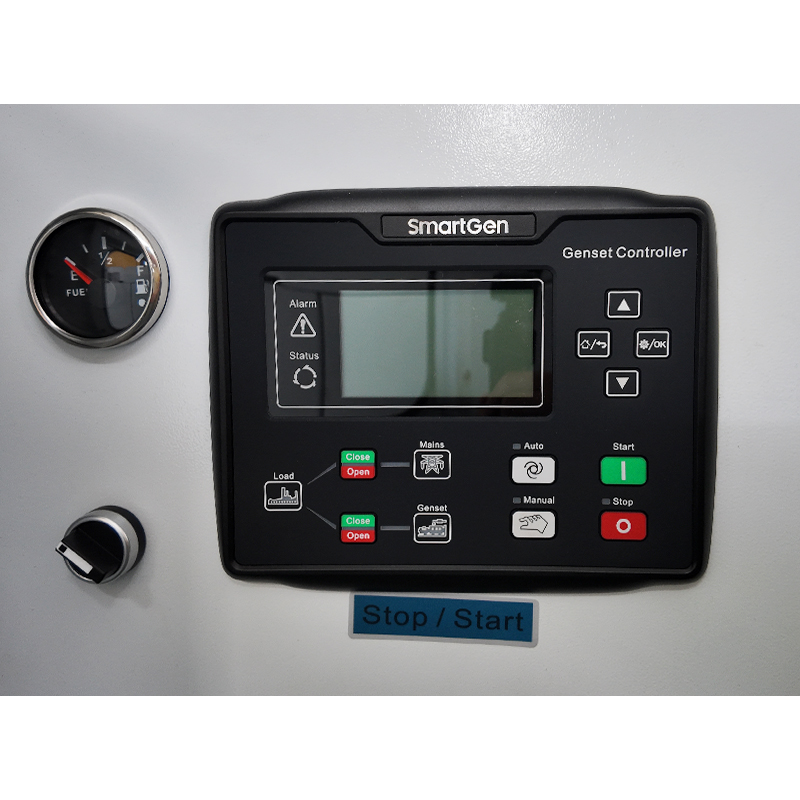

Control Panel SmartGen, HGM6110
Circuit Breaker Type 3-pole Manual Circuit Breaker
Battery Maintenance Free Lead Acid
Base Frame Robust Structure / Corrosion Resistant
|
Prime Power |
Standby Power |
Voltage/Phase |
Hz/rpm |
PF |
|
125 kVA/120 kW |
150 kVA/132 kW |
220V, 1/3 |
50/1500 |
0.8 |
|
Diesel Generator Set |
||||
|
Engine Make /Mode |
WeiChai WP6D152E200 |
|||
|
Alternator Make /Model |
Stamford, UCI 274F |
|||
|
Control Panel |
SmartGen, HGM6110 |
|||
|
Circuit Breaker Type |
3-pole Manual Circuit Breaker |
|||
|
Battery |
Maintenance Free Lead Acid |
|||
|
Base Frame |
Robust Structure/ Corrosion Resistant |
|||
|
Dimensions |
Length(mm) |
Width(mm) |
Height(mm) |
Weight(KG) |
|
Silent Type |
3200 |
1100 |
1800 |
|
|
Engine Specifications |
||||
|
Engine Make Model |
WeiChai WP6D152E200 |
|||
|
No. of Cylinders |
6-Cylinder; L-type |
|||
|
Cycle |
4 Stroke |
|||
|
Aspiration |
Turbocharged And Intercooled |
|||
|
Fuel System |
Direct Injection Type |
|||
|
Governing Type |
Mechanical Pump / Electronic Governor |
|||
|
Displacement |
6.75 L |
|||
|
Bore/Stroke |
105 x 130mm |
|||
|
Compression Ratio |
18:01 |
|||
|
Prime Power |
138kW |
|||
|
Standby Power |
152kW |
|||
|
Lubrication System |
||||
|
Oil pressure @ Idle Speed |
≥120 kPa |
|||
|
Oil Pan Capacity High / Low |
16L |
|||
|
Air System |
||||
|
Maximum Intake Air Restriction |
||||
|
Dirty Filter Element |
≤3.6 kPa |
|||
|
Clean Filter Element |
≤6kPa |
|||
|
Intake Air Flow @ PRP |
615 kg/h |
|||
|
Cooling System |
||||
|
Coolant Capacity - Engine Only |
8 L |
|||
|
Thermostat Modulating Range |
76-90 °C |
|||
|
Comply With Standards |
||||
|
GB/T 2820.1~6-2009, GB/T 2820.8~ 10-2002, GB/T 2820.12-2002, JB/T 10303-2001 , JB/T 2819-1995, JB8587-1997, ISO8528, ISO3046 |
||||
| Genset Model | Engine Model | Frequency | Speed | Continuous power | Type | Download |
| MLW36 | WP2.3D48E200 | 50Hz | 1500rpm | 36Kw | open/silent |  |
| MLW50 | WP4.1D66E200 | 50Hz | 1500rpm | 50Kw | open/silent | |
| MLW65 | 50Hz WP4.1D80E200 | 50Hz | 1500rpm | 65Kw | open/silent | |
| MLW80 | WP4.1D100E200 | 50Hz | 1500rpm | 80Kw | open/silent | |
| MLW400 | WP13D490E310 | 50Hz | 1500rpm | 400Kw | open/silent | |
| MLW520 | 6M33D633E200 | 50Hz | 1500rpm | 520Kw | open/silent | |
| MLW550 | 6M33D670E200 | 50Hz | 1500rpm | 550Kw | open/silent | |
| MLW600 | 6M33D725E310 | 50Hz | 1500rpm | 600Kw | open/silent | |
| MLW640 | 8M33D800E200 | 50Hz | 1500rpm | 640Kw | open/silent | |
| MLW650 | 12M26D792E200 | 50Hz | 1500rpm | 650Kw | open/silent | |
| MLW720 | 8M33D890E200 | 50Hz | 1500rpm | 720Kw | open/silent | |
| MLW720 | 12M26D902E200 | 50Hz | 1500rpm | 720Kw | open/silent | |
| MLW800 | 8M33D975E310 | 50Hz | 1500rpm | 800Kw | open/silent | |
| MLW800 | 12M26D968E200 | 50Hz | 1500rpm | 800Kw | open/silent | |
| MLW900 | 12M33D1108E200 | 50Hz | 1500rpm | 800Kw | open/silent | |
The products provided are all brand new, and each unit has undergone strict factory testing.
All products provide warranty services, with a warranty period of 18 months after the unit is debugged and accepted, or a total of 1500 hours of operation, whichever expires first.
