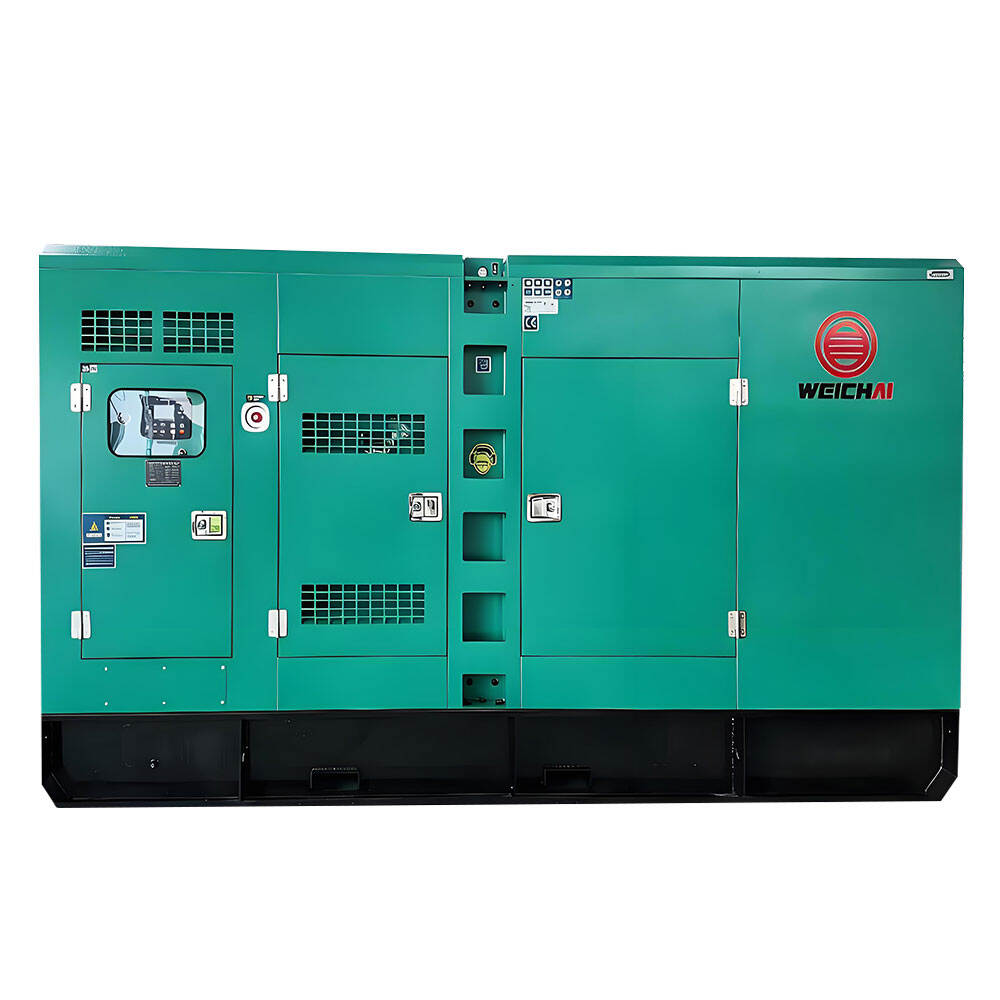

Minlongpower presents the Weichai 600kVA diesel generator set. This generator is suitable for medium to large applications. Weichai's engineering excellence is reflected in its performance and durability. The 600kVA capacity can power a variety of industrial and commercial equipment. It is a reliable choice for backup power in large facilities or for continuous power supply in certain operations.
Brief Description
WeiChai 6M33D740E311
Prime Power: 750 kVA / 600 kW

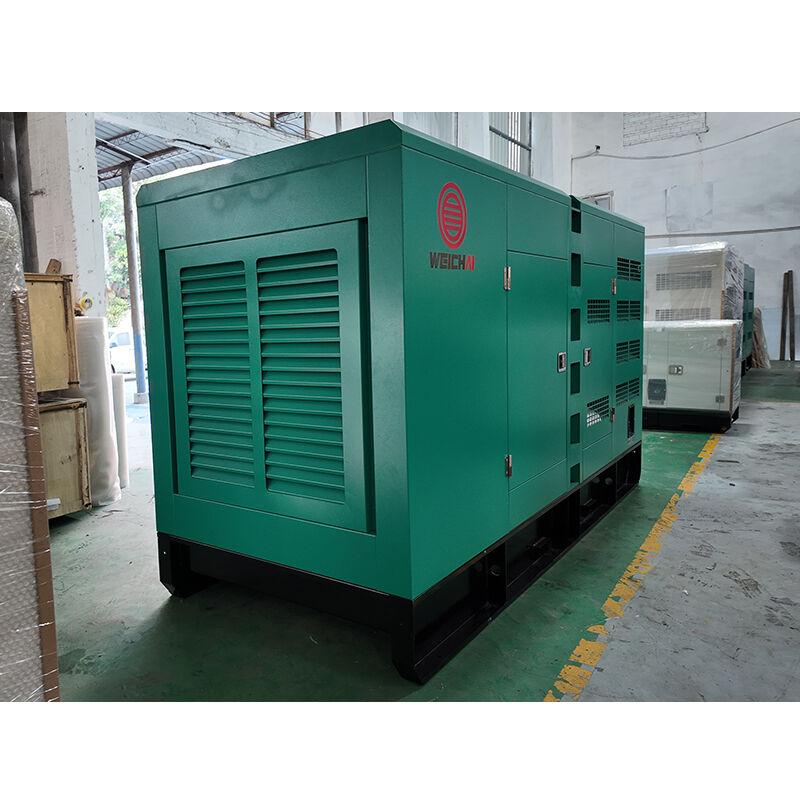

Silent Generator Set
Detailed Description

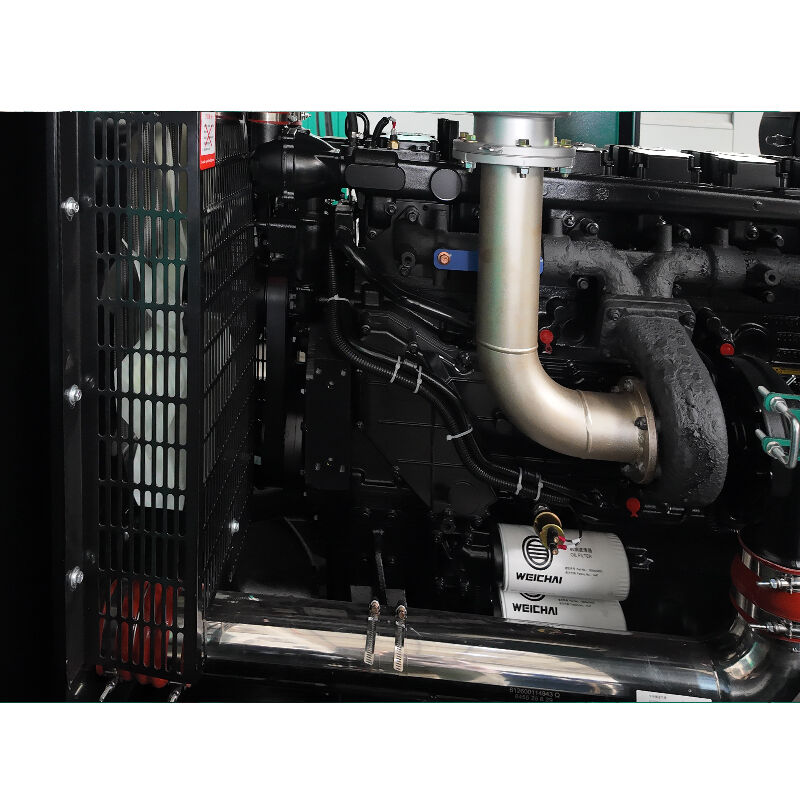

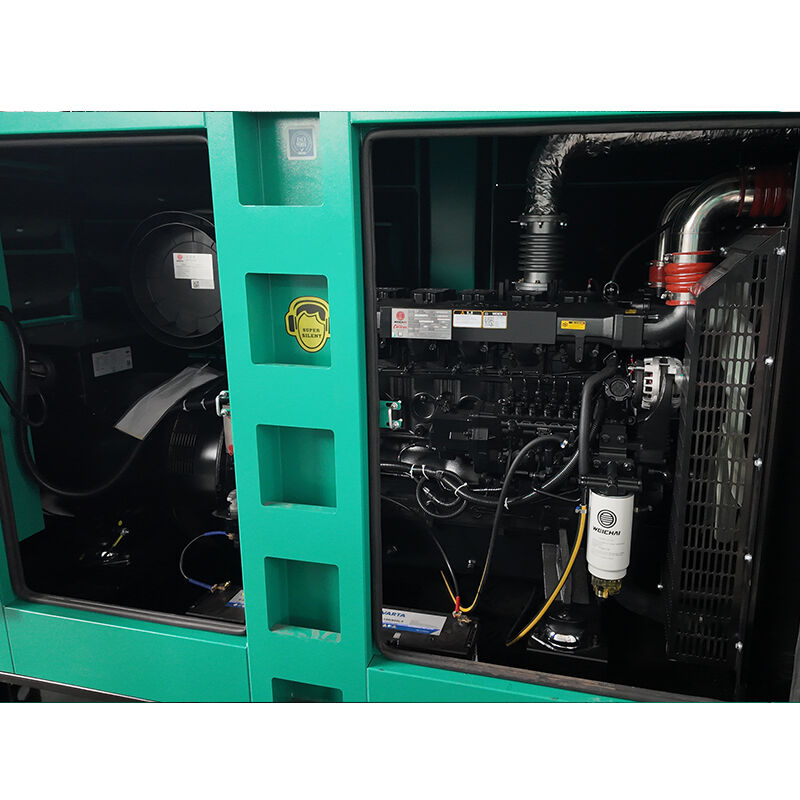

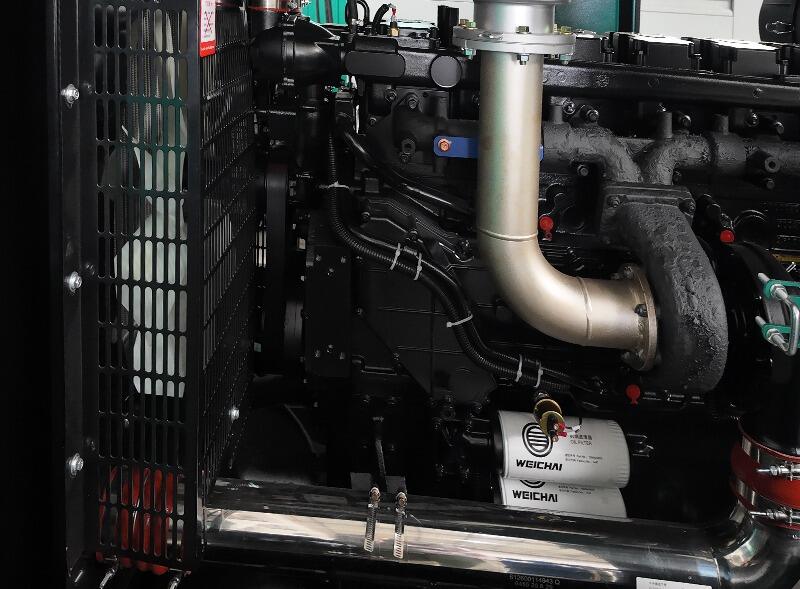

Engine Make / Model: WeiChai 6M33D740E311
Alternator Make / Model: Stamford, S5LD-H41

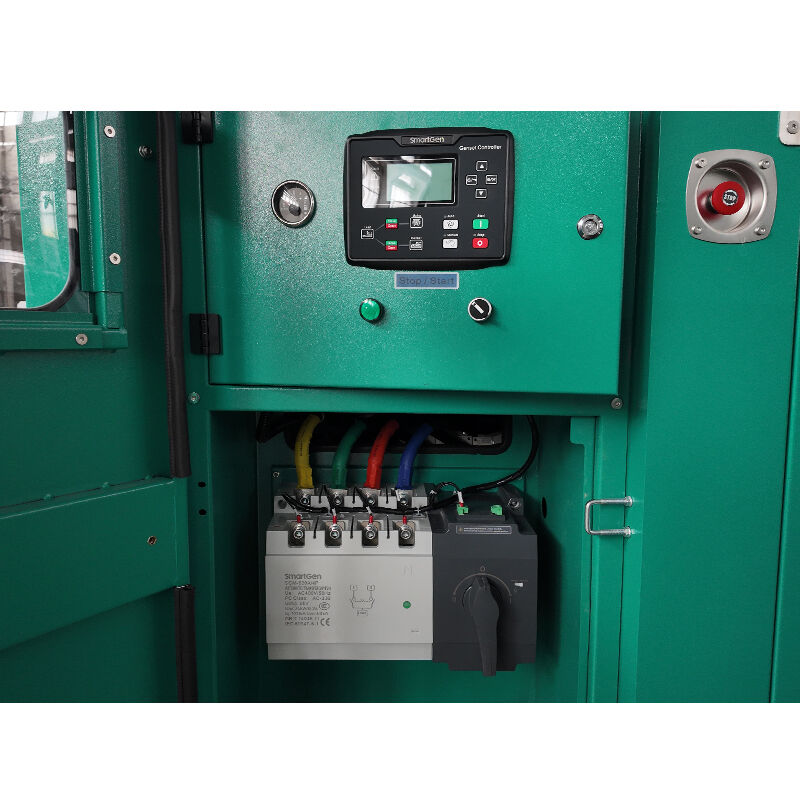

ControlPanel: SmartGen, HGM6110
Circuit Breaker Type: 3-pole Manual Circuit Breaker
Battery: Maintenance free Lead Acid
BaseFrame: Robust Structure / Corrosion Resistant
|
Prime Power |
Standby Power |
Voltage/Phase |
Hz/Rpm |
PF |
|
750kVA / 600kW |
825kVA / 660kW |
220V, 1 / 3 |
60 / 1800 |
0.8 |
|
Diesel Generator Set |
||||
|
Engine Make / Model |
WeiChai 6M33D740E311 |
|||
|
Alternator Make / Model |
Stamford, S5LD-H41 |
|||
|
Control Panel |
SmartGen, HGM6110 |
|||
|
Circuit Breaker Type |
3-pole Manual Circuit Breaker |
|||
|
Battery |
Maintenance Free Lead Acid |
|||
|
Base Frame |
Robust Structure / Corrosion Resistant |
|||
|
Dimensions |
Length(mm) |
Width(mm) |
Height(mm) |
Weight(KG) |
|
Silent Type |
5800 |
2100 |
2550 |
7490 |
|
Engine Specifications |
||||
|
Engine Make Model |
WeiChai 6M33D740E311 |
|||
|
No. of Cylinders |
6-Cylinder; L-type |
|||
|
Cycle |
4 Stroke |
|||
|
Aspiration |
Turbocharged And Intercooling |
|||
|
Fuel System |
Direct Injection Type |
|||
|
Governing Type |
Electronically Controlled High Pressure Common Rail |
|||
|
Displacement |
19.6 L |
|||
|
Bore / Stroke |
150 X 185 mm |
|||
|
Compression Ratio |
15:01 |
|||
|
Prime Power |
670 kW |
|||
|
Standby Power |
740 kW |
|||
|
Lubrication System |
||||
|
Oil pressure @ Idle Speed |
≥200 kPa |
|||
|
Oil Pan Capacity High / Low |
36 / 61 L |
|||
|
Air System |
||||
|
Maximum Intake Air Restriction |
||||
|
Dirty Filter Element |
≤6.2 kPa |
|||
|
Clean Filter Element |
≤3 kPa |
|||
|
Intake Air Flow @ PRP |
3855.8 kg/h |
|||
|
Cooling System |
||||
|
Coolant Capacity - Engine Only |
44 L |
|||
|
Thermostat Modulating Range |
80±2/92 °C |
|||
|
Comply With Standards |
||||
|
GB/T 2820.1~6-2009, GB/T 2820.8~10-2002, GB/T 2820.12-2002, JB/T 10303-2001, JB/T 2819-1995, JB8587-1997, ISO8528, ISO3046 |
||||
| Genset Model | Engine Model | Frequency | Speed | Continuous power | Type | Download |
| MLW36 | WP2.3D48E200 | 50Hz | 1500rpm | 36Kw | open/silent |  |
| MLW50 | WP4.1D66E200 | 50Hz | 1500rpm | 50Kw | open/silent | |
| MLW65 | 50Hz WP4.1D80E200 | 50Hz | 1500rpm | 65Kw | open/silent | |
| MLW80 | WP4.1D100E200 | 50Hz | 1500rpm | 80Kw | open/silent | |
| MLW400 | WP13D490E310 | 50Hz | 1500rpm | 400Kw | open/silent | |
| MLW520 | 6M33D633E200 | 50Hz | 1500rpm | 520Kw | open/silent | |
| MLW550 | 6M33D670E200 | 50Hz | 1500rpm | 550Kw | open/silent | |
| MLW600 | 6M33D725E310 | 50Hz | 1500rpm | 600Kw | open/silent | |
| MLW640 | 8M33D800E200 | 50Hz | 1500rpm | 640Kw | open/silent | |
| MLW650 | 12M26D792E200 | 50Hz | 1500rpm | 650Kw | open/silent | |
| MLW720 | 8M33D890E200 | 50Hz | 1500rpm | 720Kw | open/silent | |
| MLW720 | 12M26D902E200 | 50Hz | 1500rpm | 720Kw | open/silent | |
| MLW800 | 8M33D975E310 | 50Hz | 1500rpm | 800Kw | open/silent | |
| MLW800 | 12M26D968E200 | 50Hz | 1500rpm | 800Kw | open/silent | |
| MLW900 | 12M33D1108E200 | 50Hz | 1500rpm | 800Kw | open/silent | |
The products provided are all brand new, and each unit has undergone strict factory testing.
All products provide warranty services, with a warranty period of 18 months after the unit is debugged and accepted, or a total of 1500 hours of operation, whichever expires first.
