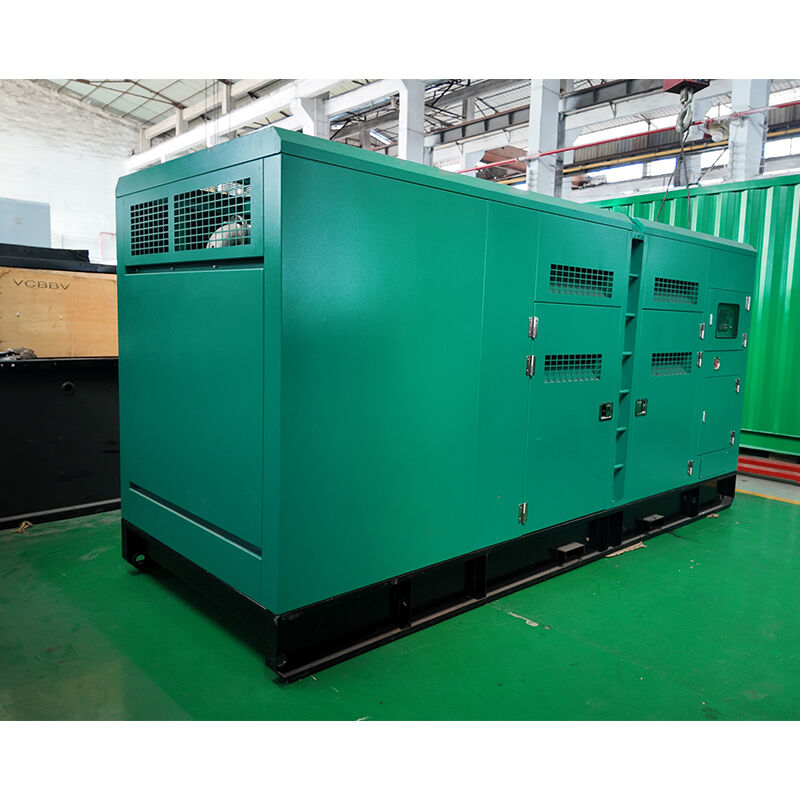

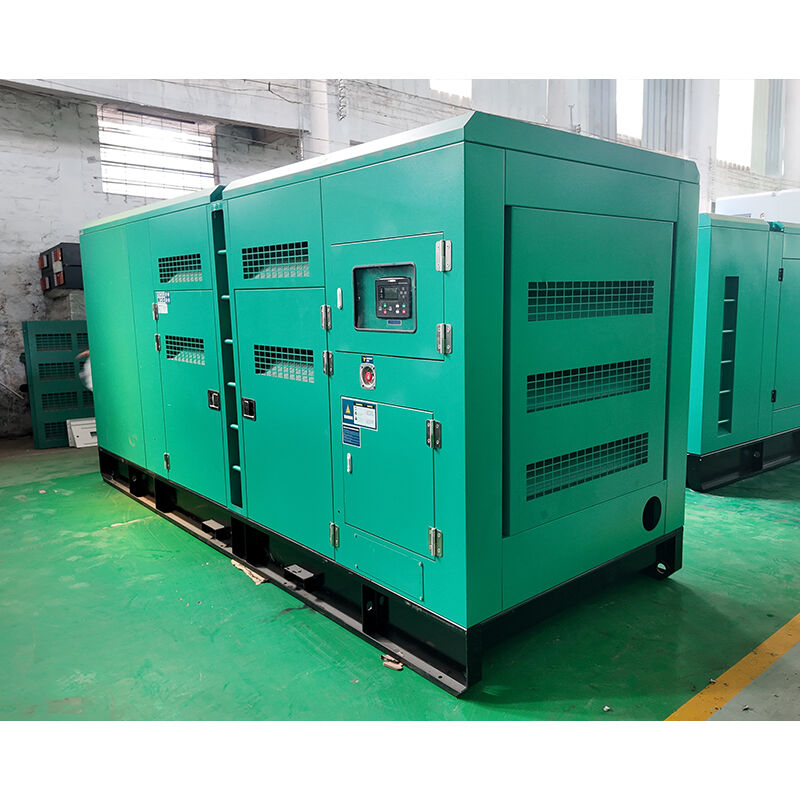

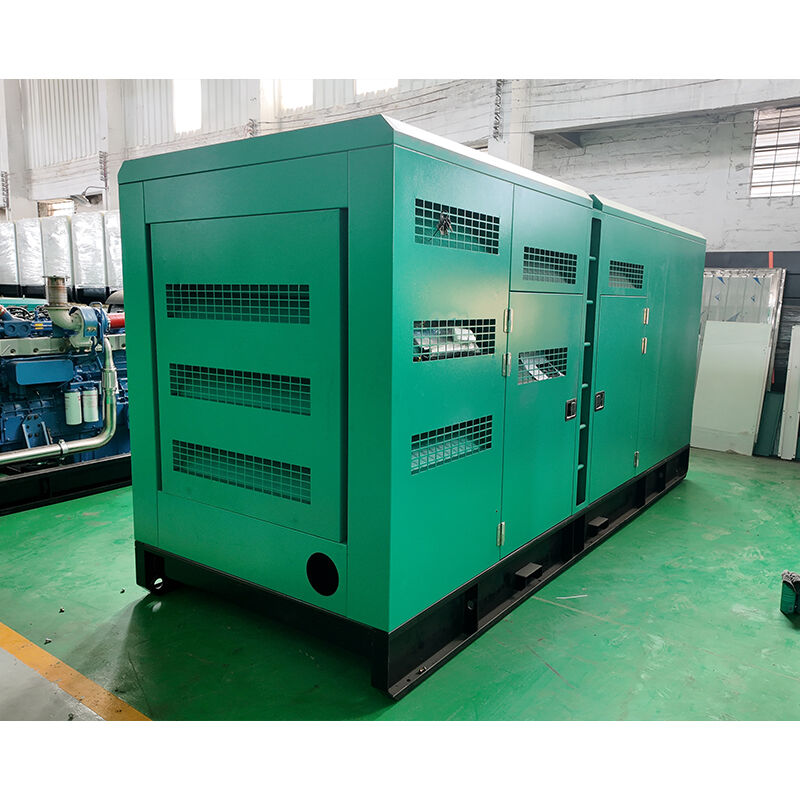

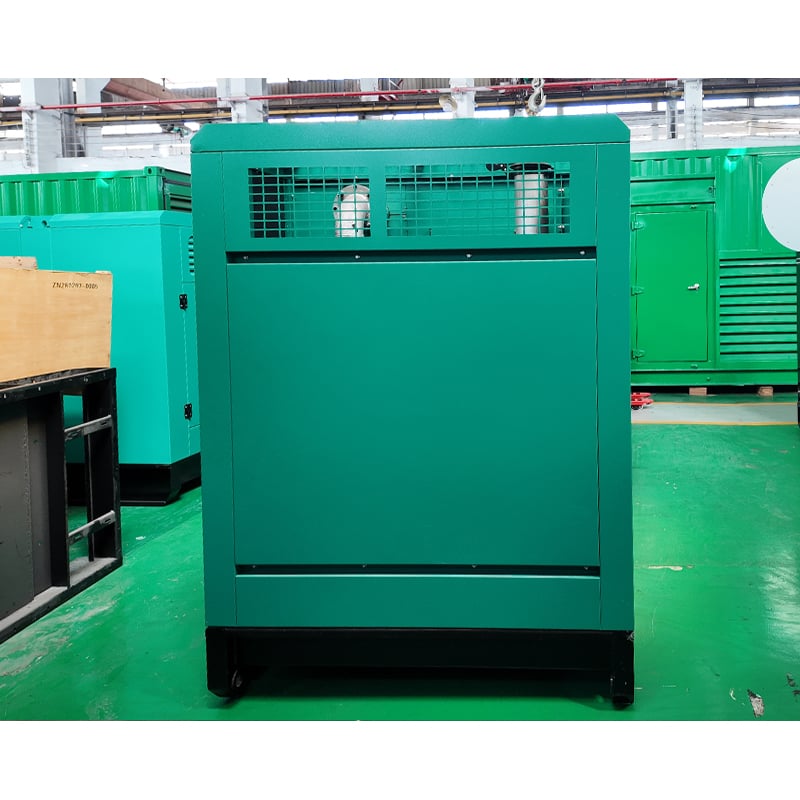

Yuchai YC6K350N-D30 200kw Natural Gas Generator Set

Genset parameters
Model: MLY200
Rated power: 200 kW/250 kVA
Rated speed: 1,500 r/min
Rated voltage: 400 V
Rated current: 361A
Frequency: 50 Hz
Power factor: 0.8 (lagging)
Electrical efficiency: ≥34.7%
Gas consumption: 63.3m³/h
Noise: ≤96 dB(A) @ 1m
Starting mode: electronic
Weight: 3200 kg

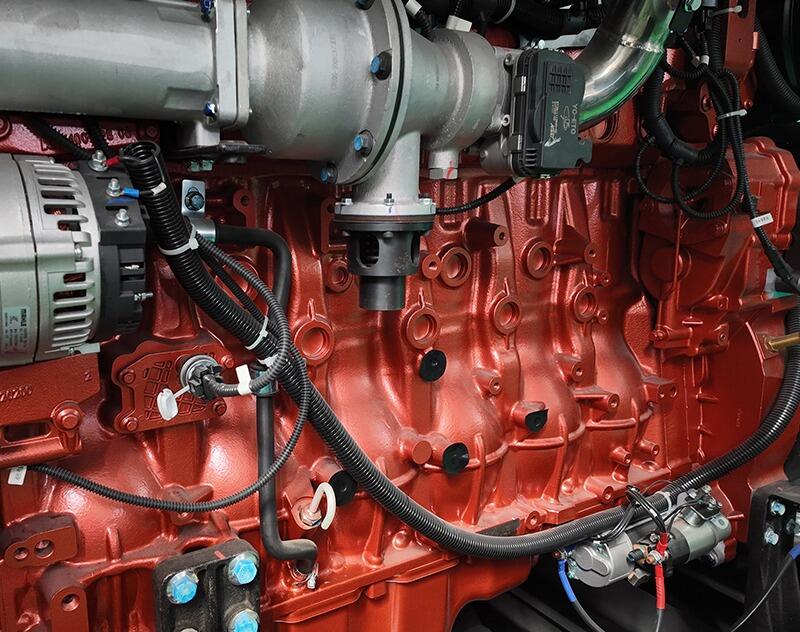

Engine parameters
Engine model: YC6K350N-D30
Rated power: 200 kW
Rated speed: 1,500 r/min
Number of cylinders: 6
Form: L-type, four-stroke, water-cooling
Bore × stroke: 129 mm × 165 mm
Displacement: 12.94 L
Compression ratio: 10.5:1
Control system: ECU
Oil consumption rate: ≤0.2 g/kWh
Coolant capacity (excluding radiator): 72 L
Oil capacity: 32 L
Overhaul interval: 40,000 h

Alternator parameters
Alternator model: GZSTF Power STF200-1-4
Wiring mode: three-phase four-wire system (Y type)
Voltage regulation mode: AVR
IP grade: IP23
Insulation class: H

Test conditions
Calorific value of gas: 9.1 kWh/m³
Volume content of methane: ≥95%
Gas temperature: -20~50°C
Gas humidity: <60%
Gas intake pressure: 10~30 kPa
Air intake negative pressure: >-3 kPa
Exhaust back pressure: <5 kPa
Absolute atmospheric pressure: 101.32 kPa
Ambient temperature: 25°C
Relative humidity: ≤30%
Altitude: ≤1,000 m

Note: All data of the gas genset are measured in the above test environment.

The products provided are all brand new, and each unit has undergone strict factory testing.
All products provide warranty services, with a warranty period of 18 months after the unit is debugged and accepted, or a total of 1500 hours of operation, whichever expires first.
