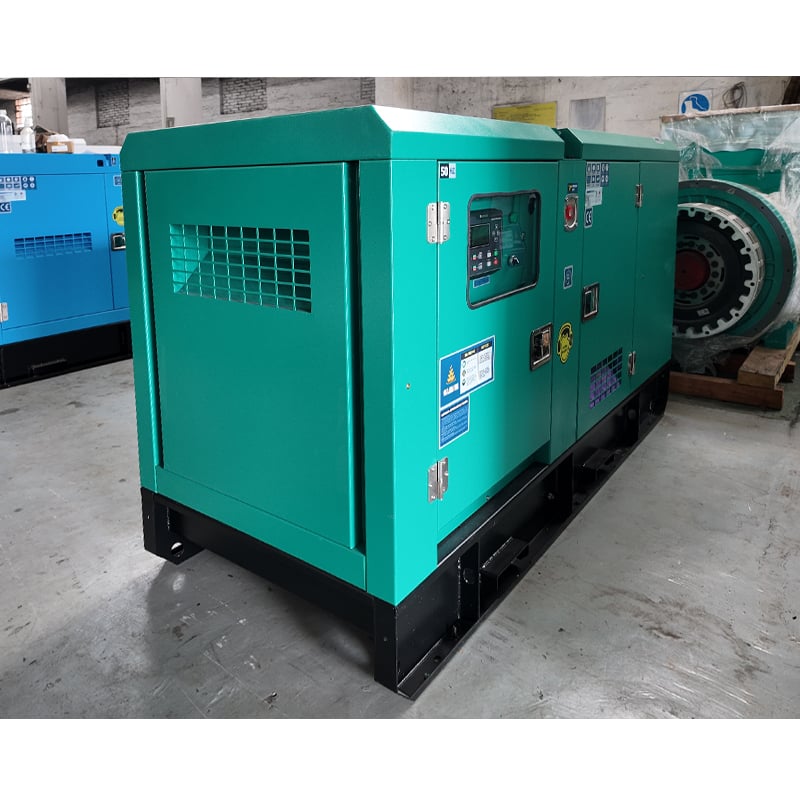

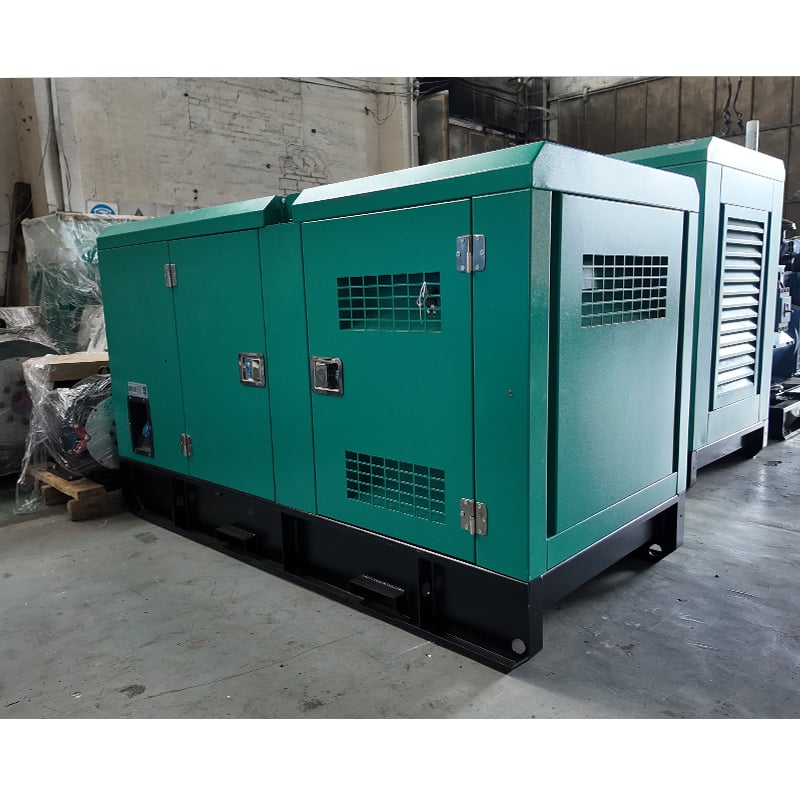

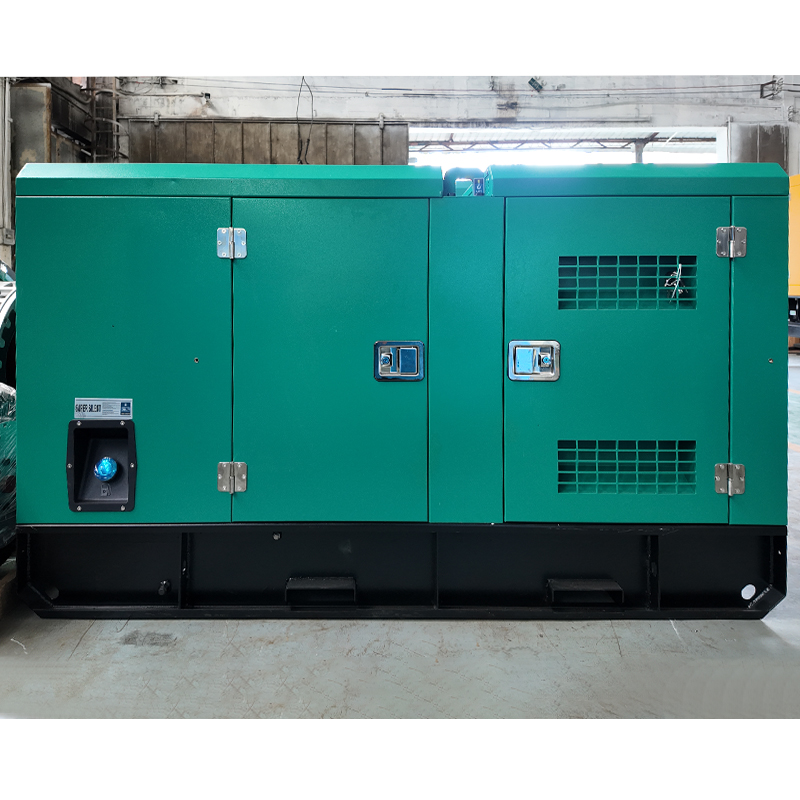

SDEC 160Kw Diesel Generator Set

Minlongpower presents the SDEC160Kw diesel generator set. This powerful generator is designed for medium to large applications. Perkins' advanced engineering provides high performance and reliability. The 900kVA capacity can power a significant amount of equipment and operations. It is suitable for industrial, commercial, and institutional settings. The generator set is built to handle heavy workloads and deliver consistent power output.

Description Parameters Sales Commitment FAQ

Description

50Hz Engine model: 6DTAA8.9-G31
Alternator brand model: GZSTF POWER, STF160-1-4
Alternator brand model: Leroysomer, TAL-A44-M
Alternator brand model: Stanford, N200G4
50Hz Prime power: 160KW/200KVA
50Hz Standby power: 180KW/225KVA

Standard configuration
・Engine model（6DTAA8.9-G31）
・Meet the environmental temperature, water tank radiator, belt driven cooling fan, With fan safety shield
・24VDC battery charger
・Alternator：Single Bearing, IP21, H-insulation
・Air filter, fuel filter, oil filter
・8-hour fuel tank, shock absorber
・2×12VDC Start the battery and battery connection cable
・A set of smoke exhaust elbows, corrugated pipes, flanges, and silencers
・Random use of materials

Parameters

Voltage	Frequency（Hz）	Phase Sequence	Power Factor	Rated Current（A）	Prime Power（kW/kVA）
230/400	50	3	0.8	288.7	160/200
The relationship between engine power and altitude: When the altitude is above 1500 meters, the power decreases by 4% for every 300 meters increase. The relationship between engine power and ambient temperature: For every 10 degrees Celsius above 40 degrees Celsius, the engine power decreases by 3%.

1500rpm Engine Performance Data

Output Power			Fuel Consumption
%	kW	HP	L/h
Basic Output Power
100	185	252	43.1
75	138.8	189	32.2
50	92.5	126	21.6
25	46	63	10.8

Engine Parameters
Basic Engine Parameters
Model	6DTAA8.9-G31
Aspiration	Turbocharged and intercooled
Fuel system	Electronically controlled high pressure common rail
Cylinder type	L-type 6cylinder, Four stroke
Displacement L	8.82 L
mm Bore × Stroke mm	114×144 (mm)
Compression ratio	16.5:1
Engine speed rpm	1500
Standby power kW	204
Prime power kW	185

Alternator Parameter
Mode	GZSTF POWER STF160-1-4
Phase	3
Connection	Three phase four wire, Y-type winding
Bearing number	1
Power factor	0.8
Protection grade	IP21
Altitude requirements	≤1000m
Excitation method	Brushless self excitation
Insulation level	H/H
TIF	<50
THF	<2%
Maximum overspeed	2250 RPM/MID
Capacity	160KW
Efficiency	≥95 %
50Hz voltage	230/400V

Generator Set Parameters
Voltage setting range	≥±10％
Steady state voltage regulation rate	≤0.5％
Transient voltage deviation (100% Step Load Addition)	≤＋17％
Transient voltage deviation (40% Step Load Addition)	≤－6.5％
Voltage stability time (100% Step Load Removal)	≤2.8S
Voltage stability time (40% Step Load Removal)	≤2.5S
Frequency adjustment	≥±5%
Frequency fluctuation rate	≤±0.25%
Transient frequency deviation (100% Load Rejection)	≤＋8%
Transient frequency deviation (40% Load Rejection)	≤－5％
Frequency recovery time (100% Load Rejection)	≤1.48S
Frequency recovery time (40% Load Rejection)	≤1.35S

Quality Standards For Generator Sets

The diesel generator set is designed, produced and tested in strict accordance with the standards, which can meet the requirements of various environments and meet the following relevant standards:

GB/T 2820.1~6-2009, GB/T 2820.8~10-2002, GB/T 2820.12-2002, JB/T 10303-2001

JB/T 2819-1995, JB8587-1997, ISO8528, ISO3046, ISO9001, ISO14001, CE

Information
Engine parts catalog and original factory information		Generator set maintenance record manual
Original factory information of the generator		Generator set installation and operation manual
Original factory information of control system		Receipt of generator set installation and adjustment test
Genset factory test report		Certificate of origin of generator set
Optional Parts
Engine	Alternator		Electrical System
Intermediate cold water heater	Anti condensation heater		Remote control system separated from the unit
Oil preheater	Permanent magnet excitation system (PMG)		Unit control screen with three remote functions
Air starting motor	Voltage droop (for parallel connection)		ATS automatic load transfer screen
Desert heavy-duty air filter	Generators of other temperature rise grades		Fully automatic parallel screen for multiple units
Heavy duty secondary muffler	RTD temperature sensors, 2 per phase		Anti condensation heater
Fuel System	Other		Cooling System
Base oil tank	Rain proof unit		Heat exchanger and external circulation cooling tower
Oil water separator	Silent type unit		Remote water tank
Fully automatic oil supply system	Trailer type unit		Split water tank
Buried fuel tanks	Vehicle mounted power generation vehicle		Marine cooling system

Sales Commitment

The products provided are all brand new, and each unit has undergone strict factory testing.

All products provide warranty services, with a warranty period of 18 months after the unit is debugged and accepted, or a total of 1500 hours of operation, whichever expires first.


FAQ

Q: How can we guarantee quality?

A: Always a pre-production sample before mass production;
Always final Inspection before shipment;

Q: What can you buy from us?

A: Diesel Generator Set, Silent Diesel Generator Set, Open Type Diesel Generator Set, Photovoltaic Power Station, Solar Power Station

Q: Why should you buy from us not from other suppliers?

A: Guangdong Minlong Mechanical and Electrical Equipment Co., Ltd. was established in 1995. Its headquarters is located in Foshan, Guangdong, the world power generating unit manufacturing base in the Pearl River Delta, which is the most developed in China.

Q: What services can we provide?

A: Accepted Delivery Terms: FOB;
Accepted Payment Currency: USD, CHF;
Accepted Payment Type: T/T, MoneyGram, Western Union, Cash;
Language Spoken: English, Chinese, Arabic
