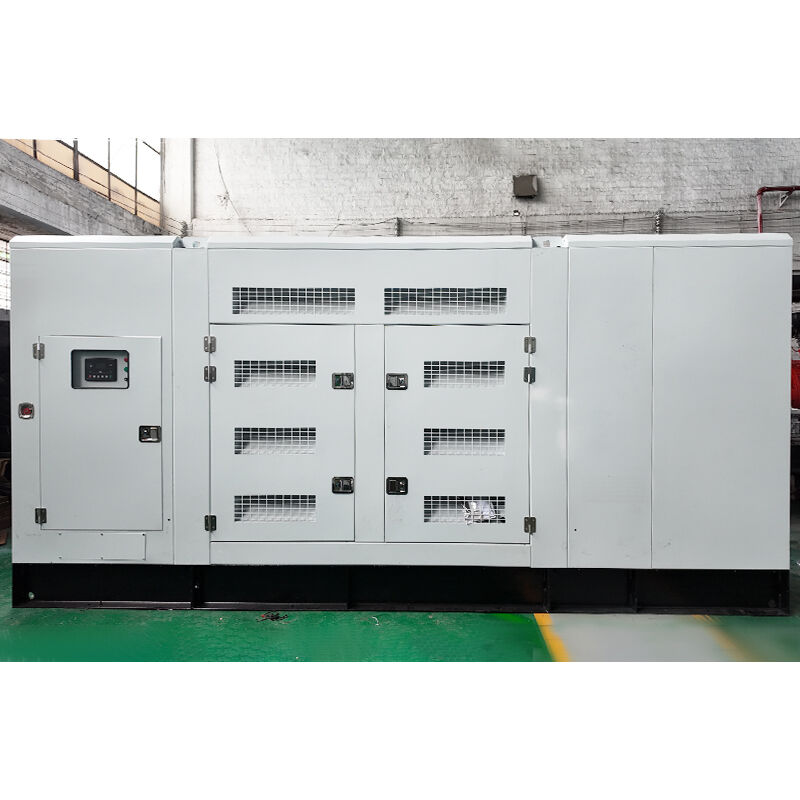

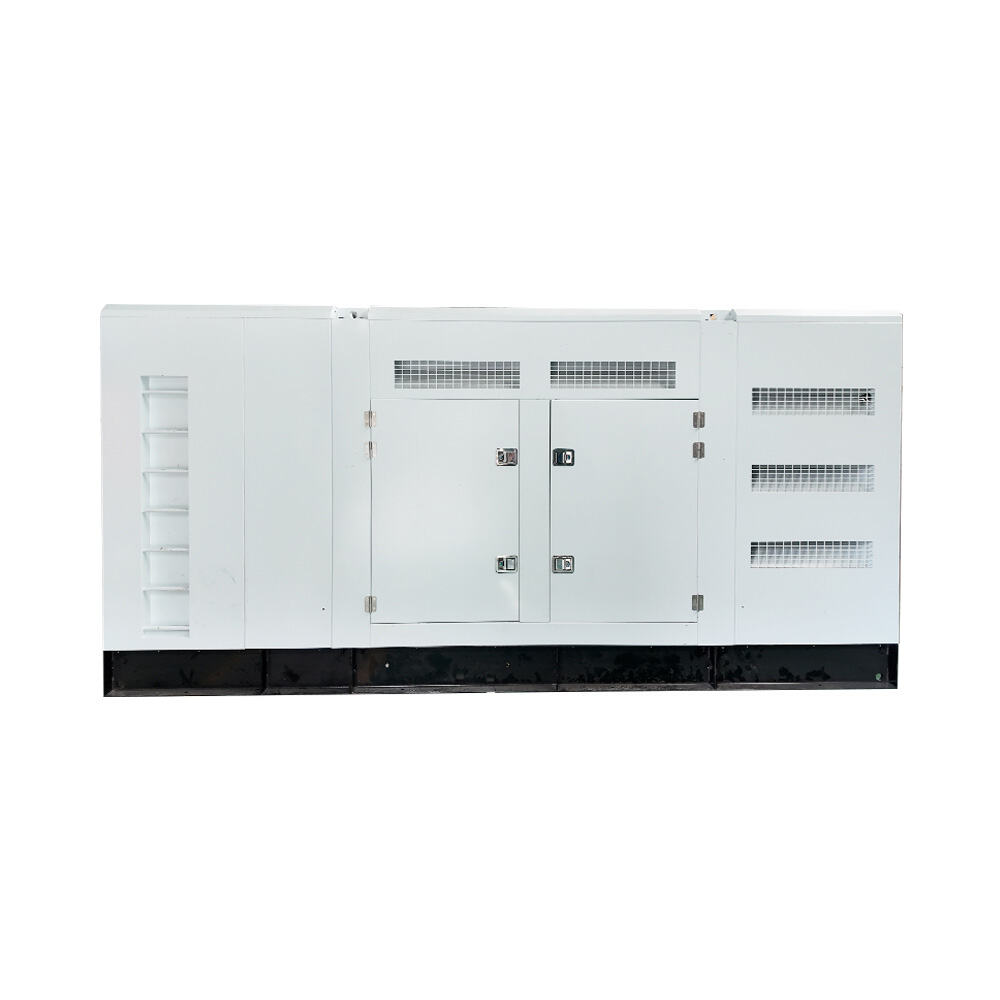

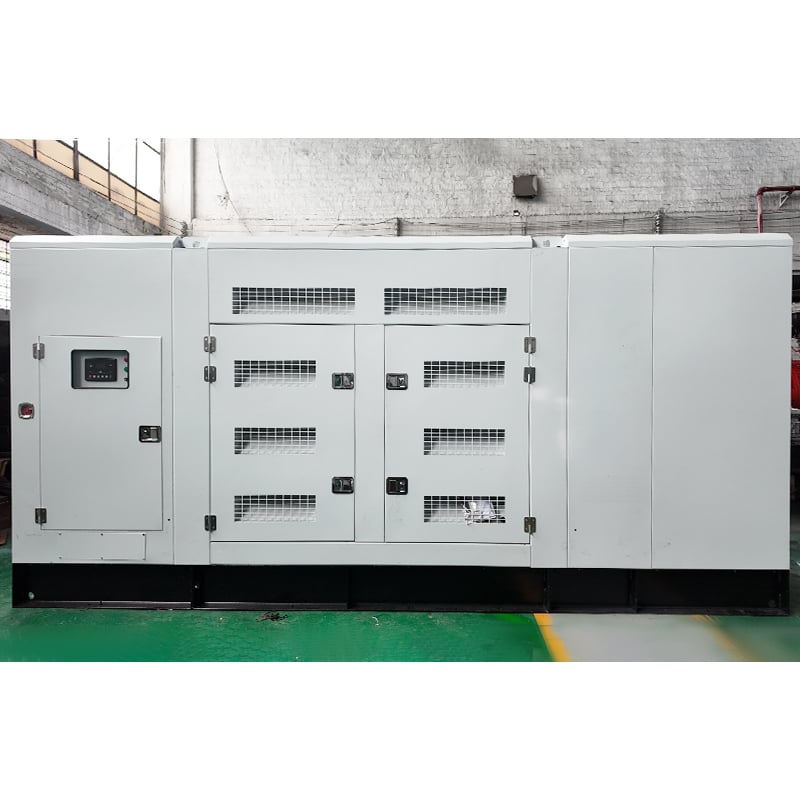

Weichai 16M33D1280NG10 1280kw Natural Gas Generator Set

Engine Model 16M33D1280NG10
Engine Speed 1500 rpm
Prime power N/A
Continuous power 1280kW
Bore×Stroke 150×185 mm
Displacement 52.3L
No. of cylinders 16-V type,4 Cycle
Fuel system Electronically controlled premix
Governor type ECU
Air Intake method Turbocharged and intercooled
Compression Ratio 12.5:1
Start-up method DC24V electrical start with charging generator

Cooling system
Coolant capacity of the engine (L)
100 / 30
Coolant capacity of radiator (L)
N/A
Coolant alarm and shutdown temperature (°C)
95 / 98
Thermostat (Modulating) Range (℃)
80 / 92
Cooling fan Power consumption (KW)
N/A
Air flow (m3/min)
N/A

Lubrication system
Oil capacity Low / High (L)
114 / 171
Oil pressure in normal condition idle speed(kPa)
≥ 200
Oil pressure in normal condition @ PRP (kPa)
400-650
Lowest oil pressure alarm (shutdown)(kPa)
200
Maximum allowable oil pressure (kPa)
100
Total system capacity / including filters (L)
171/175

The products provided are all brand new, and each unit has undergone strict factory testing.
All products provide warranty services, with a warranty period of 18 months after the unit is debugged and accepted, or
a total of 1500 hours of operation, whichever expires first.
