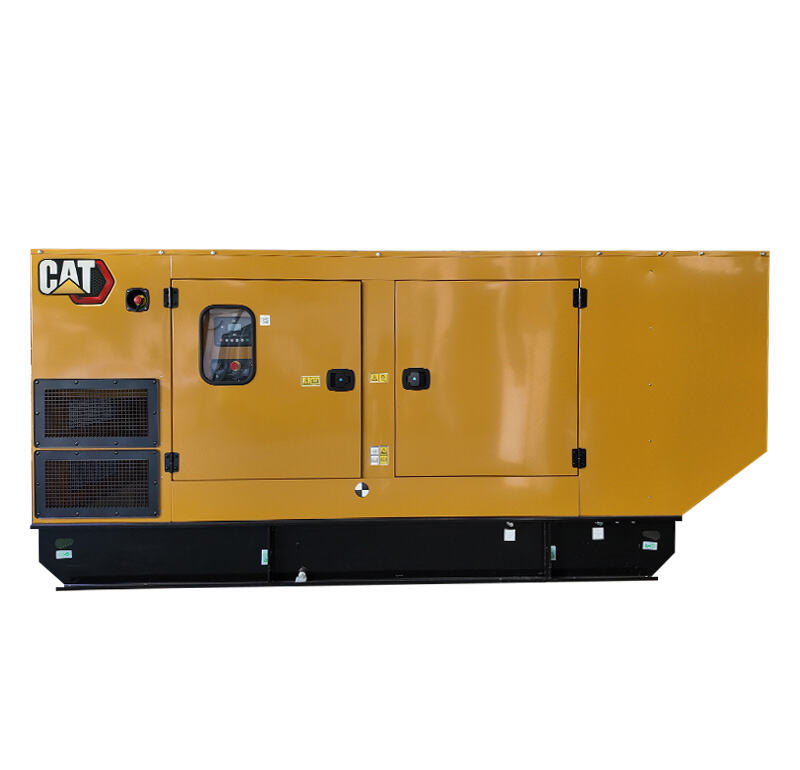

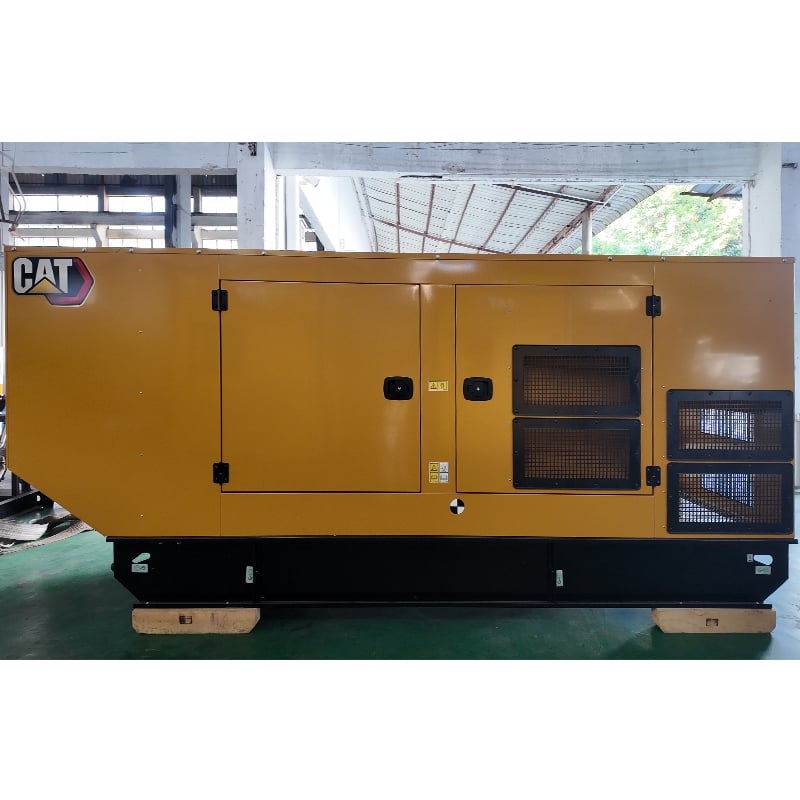

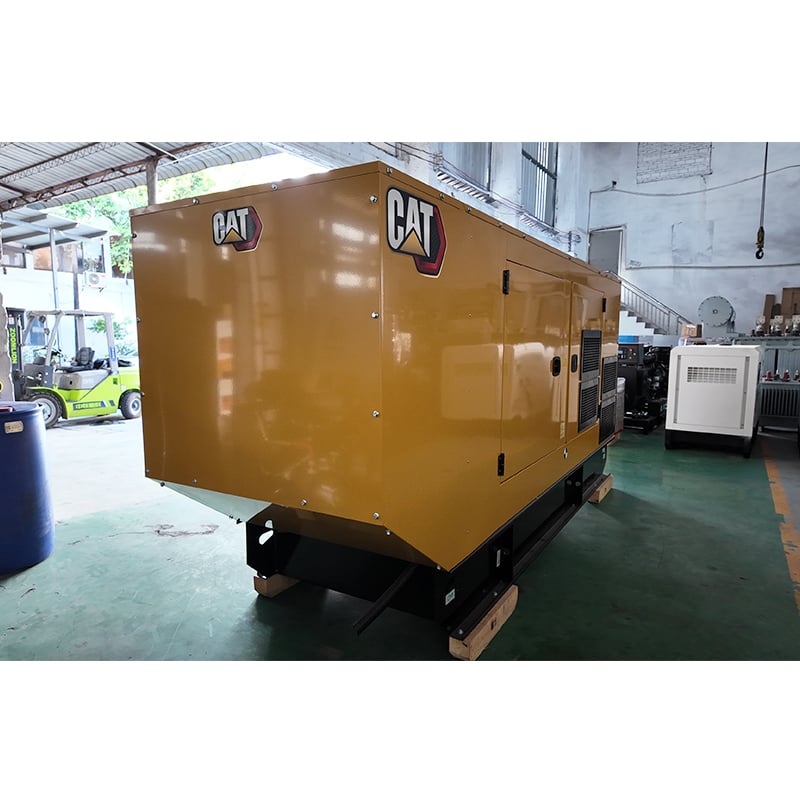

The Caterpillar 200Kw diesel generator set from Minlong Power operates quietly while delivering powerful performance. It is equipped with advanced soundproofing technology to reduce noise levels. This generator set is perfect for applications where a quiet power source is needed, such as in residential areas or noise-sensitive environments, ensuring both power and peace.

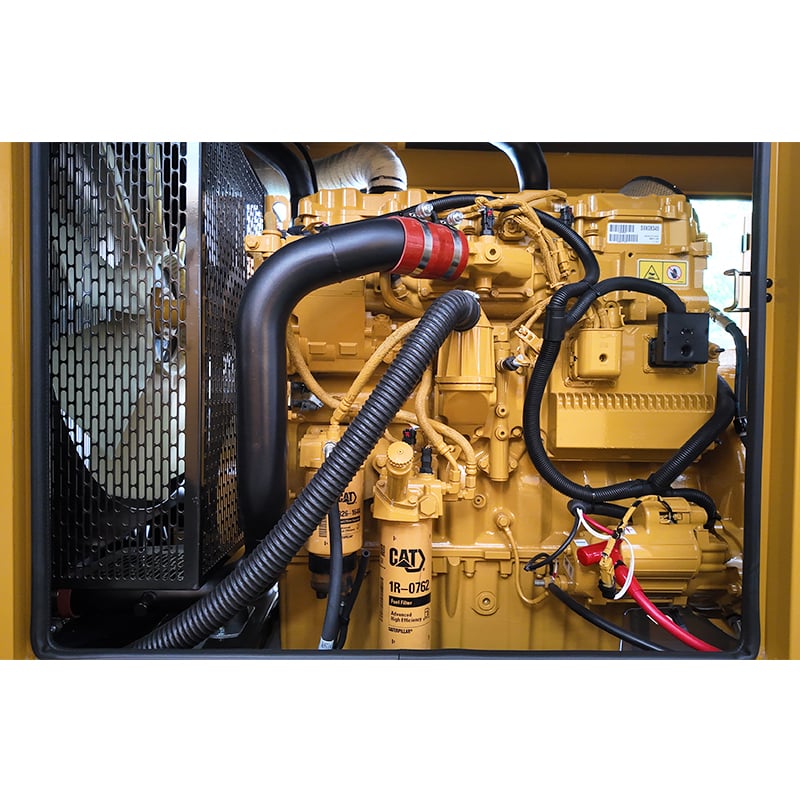

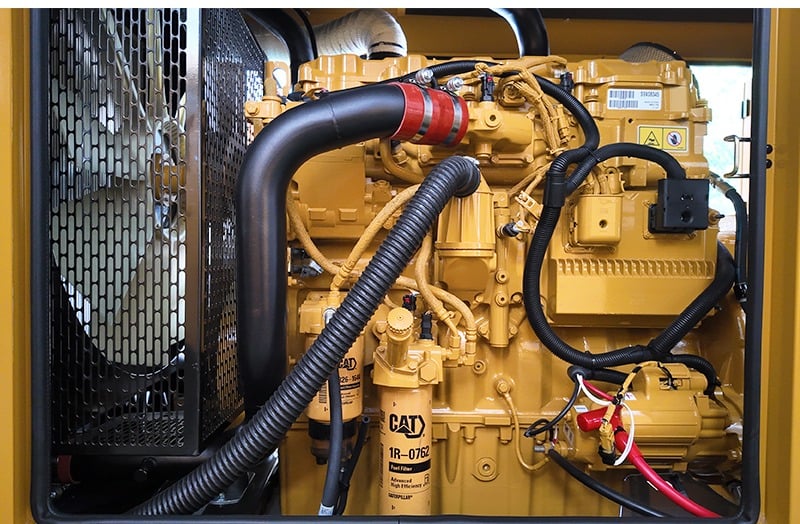

Engine Model: Cat® C9 ACERT™ In-line 6, 4-cycle diesel| Model | Standby | Prime | Emission Strategy |
|---|---|---|---|
| DE275E0 | 275 kVA, 220 ekW | 250 kVA, 200 ekW | Non-Certified Emissions |
| Performance | Standby | Prime |
|---|---|---|
| Frequency | 50 Hz | |
| Genset Power Rating | 275 kVA | 250 kVA |
|
Genset power rating with fan @ 0.8 power factor
|
220 ekW
|
200 ekW
|
| Emissions | Non-Certified Emissions | |
|
Performance Number
|
EM0878
|
EM1035
|
|
Fuel Consumption
|
||
| 100% load with fan, L/hr (gal/hr) | 57.5 (15.1) | 52.4 (13.8) |
| 75% load with fan, L/hr (gal/hr) | 44 (11.6) | 40.3 (10.6) |
| 50% load with fan, L/hr (gal/hr) | 31.5 (8.3) | 29.1 (7.6) |
| 25% load with fan, L/hr (gal/hr) | 19.4 (5.1) | 18.3 (4.8) |
| Cooling System¹ | ||
| Radiator air flow restriction (system), kPa (in. Water) | 0.12 (0.48) | 0.12 (0.48) |
| Radiator air flow, m³/min (cfm) | 409 (14443) | 409 (14443) |
| Engine coolant capacity, L (gal) | 13.9 (3.7) | 13.9 (3.7) |
| Radiator coolant capacity, L (gal) | 43 (11.5) | 43 (11.5) |
| Total coolant capacity, L (gal) | 56.9 (15.2) | 56.9 (15.2) |
| Inlet Air | ||
| Combustion air inlet flow rate, m³/min (cfm) | 16.1 (537) | 15.2 (537) |
| Max. Allowable Combustion Air Inlet Temp, °C (°F) | 48 (118) | 48 (118) |
| Exhaust System | ||
| Exhaust stack gas temperature, °C (°F) | 470 (878) | 471 (880) |
| Exhaust gas flow rate, m³/min (cfm) | 38.8 (1371) | 39.1 (1381) |
| Exhaust system backpressure (maximum allowable) kPa (in. water) | 10.0 (40.0) | 10.0 (40.0) |
| Heat Rejection | ||
| Heat rejection to jacket water, kW (Btu/min) | 111 (6312) | 103 (5857) |
| Heat rejection to exhaust (total) kW (Btu/min) | 177 (10065) | 162 (9212) |
| Heat rejection to aftercooler, kW (Btu/min) | 30.4 (1729) | 27.6 (1570) |
| Heat rejection to atmosphere from engine, kW (Btu/min) | 38 (2161) | 32.8 (1865) |
The products provided are all brand new, and each unit has undergone strict factory testing.
All products provide warranty services, with a warranty period of 18 months after the unit is debugged and accepted, or a total of 1500 hours of operation, whichever expires first.
