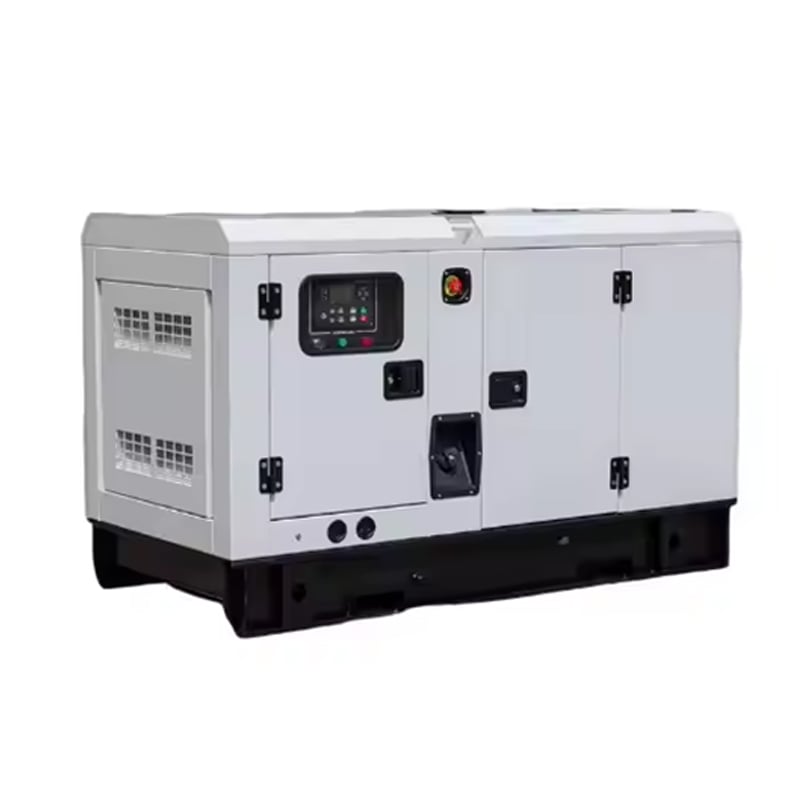

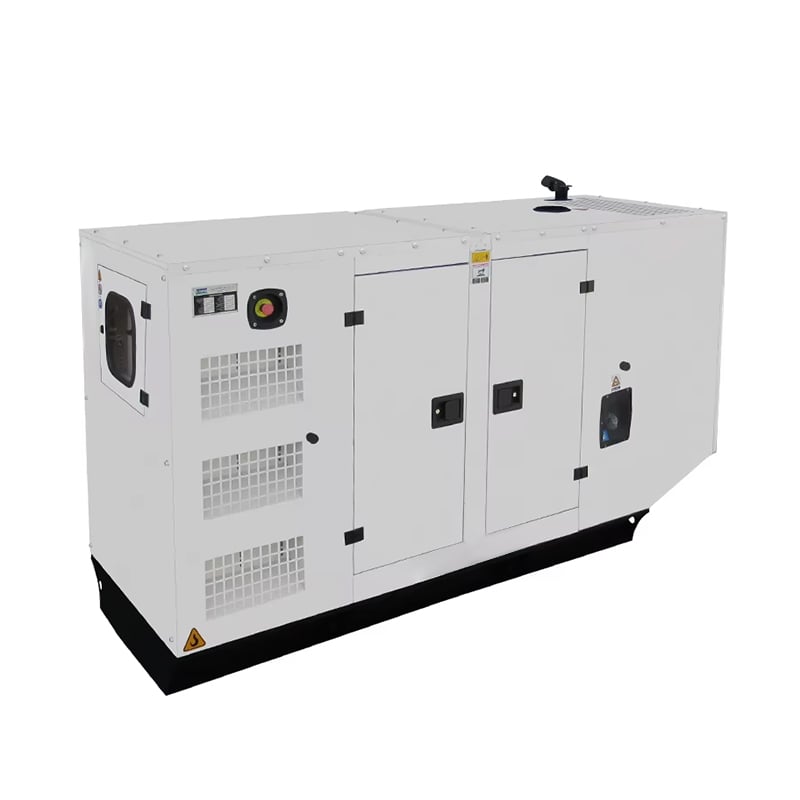

The SME1400Kw diesel generator set from Minlong Power operates quietly while delivering powerful performance. It is equipped with advanced soundproofing technology to reduce noise levels. This generator set is perfect for applications where a quiet power source is needed, such as in residential areas or noise-sensitive environments, ensuring both power and peace.
Manufacturer: SME
| Model | S12R-PTAA2-C |
| Engine speed Rated | 1500 RPM |
| Cylinder / Arrangement | 12 / 60 V |
| Displacement | 49.03 L |
| Bore and Stroke | 170 mm x 180 mm |
| Compression ratio | 13.5 : 1 |
| Max. stand by power at rated RPM | 1404 KW |
| Frequency regulation, steady state | ±0.25 % |
| Governor : type | Electrical |
| Aspiration and Cooling | Turbo-charged , Air to Air cooler |
Exhaust System
| Exhaust gas flow | 343 m³/min |
| Max back pressure | 600mm H2O |
Fuel System
| Fuel consumption100% (of the Prime Power) | 340 L / h |
| Fuel consumption75% (of the Prime Power) | |
| Fuel consumption50% (of the Prime Power) | |
| Fuel consumption110% (of the Prime Power) | 374 L / h |
Oil system
| Total oil capacity w/filters | 180 L |
Air intake
| Engine air flow | 126 m³/min |
Coolant System
| Engine capacity | 125 L |
| Max water temperature | 98°C |
| Thermostat | 71-85°C |
| Coolant flow | 1650L/min |
The products provided are all brand new, and each unit has undergone strict factory testing.
All products provide warranty services, with a warranty period of 18 months after the unit is debugged and accepted, or a total of 1500 hours of operation, whichever expires first.
